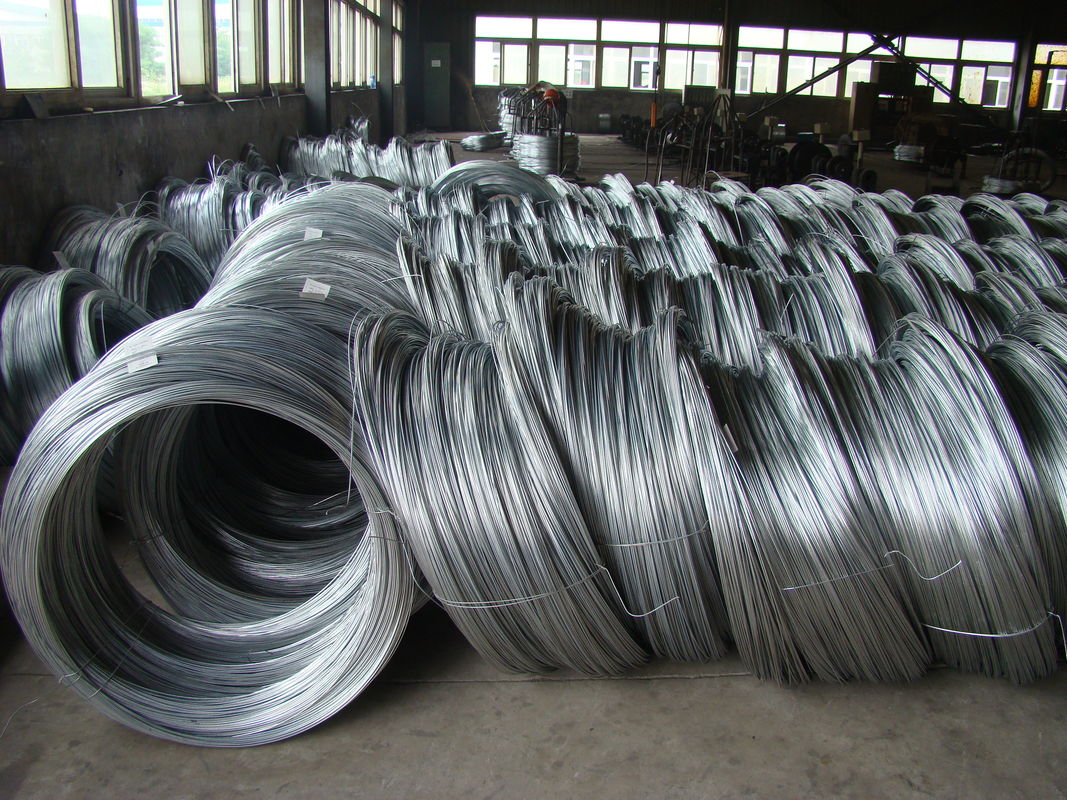

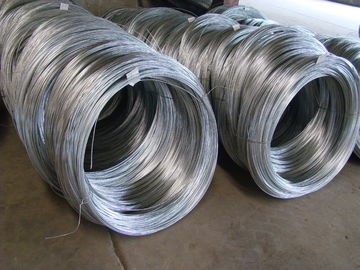

Galvanized Steel Wire for ACSR Conductor
Galvanized Steel Wire as per ASTM B 498
Wire Diamater(mm) | Diamater Tolerance(mm) | Weight of Zinc-coating(g/m2) | Stress at 1% Extension,Min(Mpa) |
Tensile Strength Min.(Mpa) |
Elongation in 250mm,Min(%) |
1.57-1.90 | +0.04,-0.03 | 210 | 1310 | 1450 | 3.0 |
Over 1.9-2.3 | +0.04,-0.03 | 220 | 1310 | 1450 | 3.0 |
Over 2.3-2.7 | +0.05,-0.05 | 230 | 1280 | 1410 | 3.5 |
Over 2.7-3.1 | +0.05,-0.05 | 240 | 1280 | 1410 | 3.5 |
Over3.1-3.5 | +0.08,-0.05 | 260 | 1240 | 1410 | 4.0 |
Over 3.5-3.9 | +0.08,-0.05 | 270 | 1240 | 1410 | 4.0 |
Over 3.9-4.5 | +0.1,-0.08 | 275 | 1170 | 1380 | 4.0 |
Over 4.5-4.8 | +0.1,-0.08 | 300 | 1170 | 1380 | 4.0 |
3. Application
Used as overhead ground wire or static wire on transmission lines, as pole or structure guy wires, and as messenger cable, fields and pastures division, animal containment.
FAQ
Q:If found the product with substardard quality.How can you solve it?
A:The buyer will be required to submit proof file,picture,ideo of the said substandard cargo send to us first. We can also send our engineer to your filed to check it directly,if need any.
Q:If sample available?
A:Yes,we can offer sample free of charge.But the express freight should be on buyer’s account.
Q:If I order big quantity,what’s the good price?
A:Please send the details enquiry to us ,such as the Item Number,Quantity for each item, Quality request,Logo,Payment Terms,Transport method,Discharge place etc.We will make the accurate quotation to you as soon as possible.
If you are interested in our products, pls feel free to tell me the diameter or nominal section area or the nick name to me. Then,I will send our best quotation to you.
Competitive Advantage:
1) Short and timely delivery
2) Considerate after-sales service
3) Professional manufacture for Galvanized steel wire strand more than 15years
4) Full set of testing equipment to ensure products’ performance
5) Strict quality control process
6)We are factory and our price is competitive
