Description

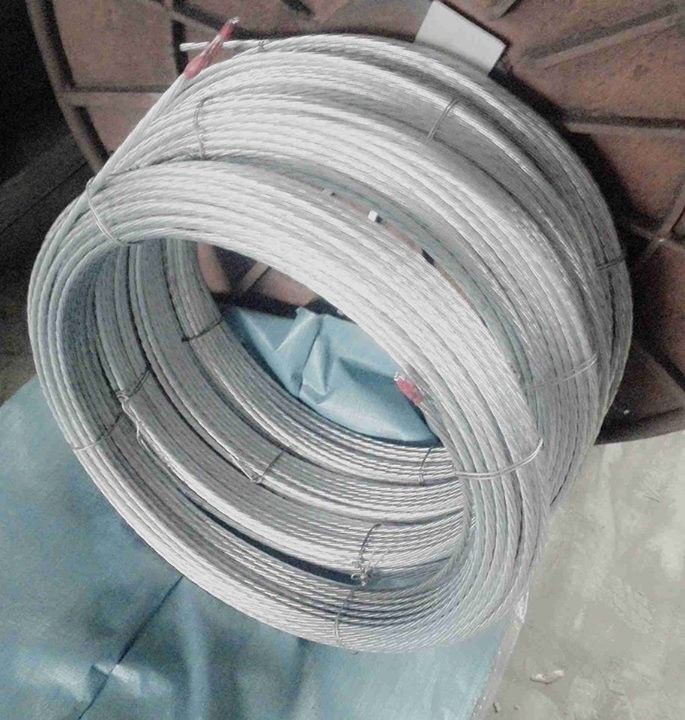

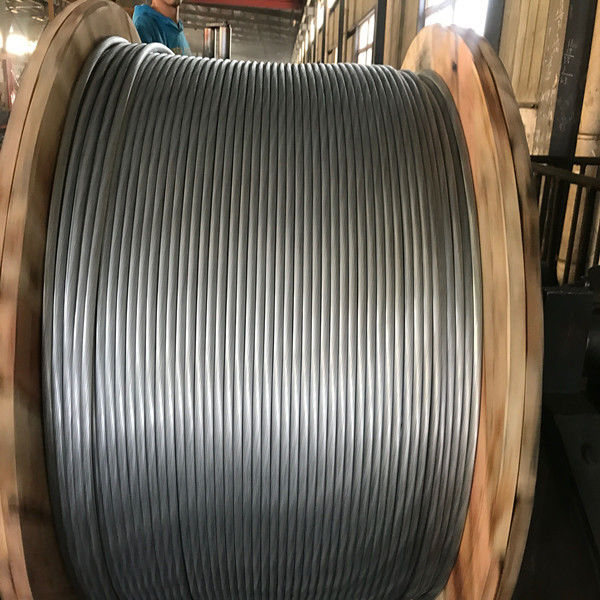

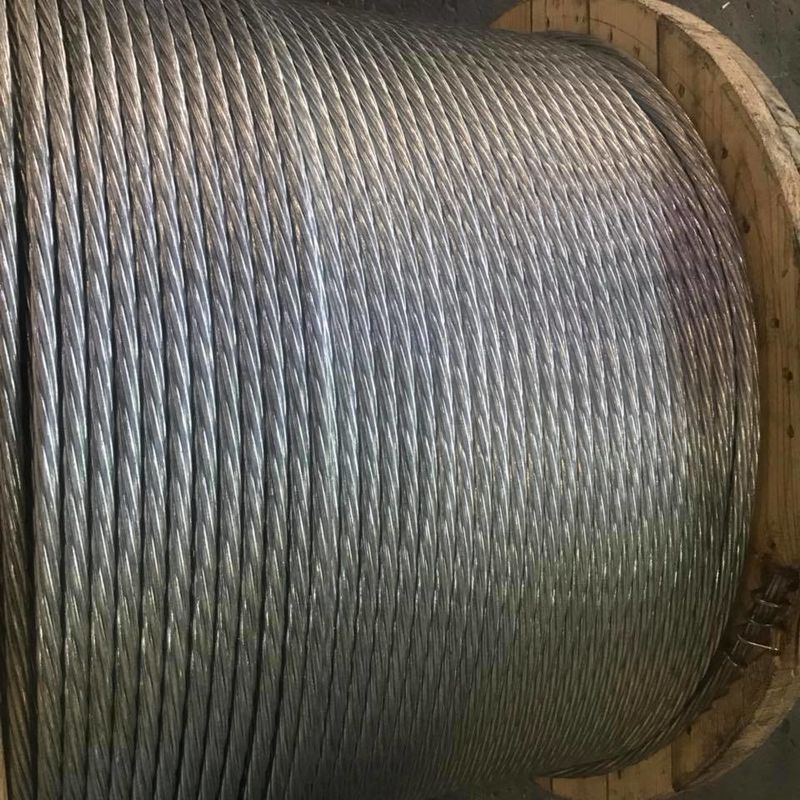

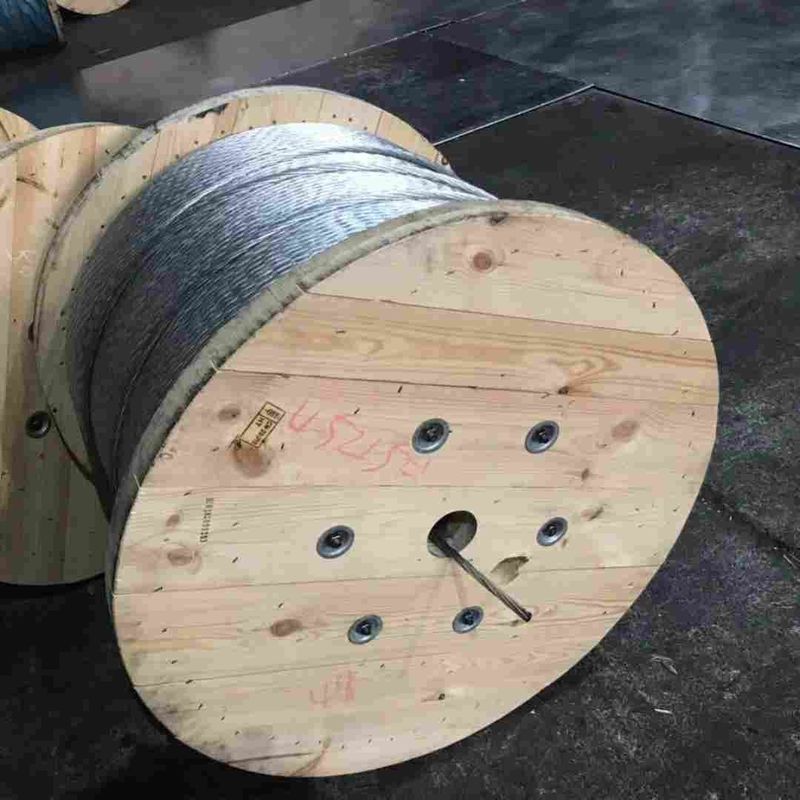

Stay Wires are galvanized steel wire strands that are used for sustaining mechanical load. Generally they are made up of 6 wires stranded around 1 wire, twisting 7 wires together. A common use for stay wires is in the electricity industry, using the wire to stay power poles and tower structures. Stay wire is made in compliance with BS 183 or other customer specified specifications. It can be supplied in coils/ drums as per requirement.
Applicable Standards
It is designed as BS 183
Dimension Characteristics
Code Name
|
Section
|
Stranding
|
Overall Diameter
|
Conductor Weight
|
Breaking Load
|
|
mm2
|
No.
|
mm |
mm
|
kg/km
|
kN
|
|
Grade 1150
|
||||||
7/24 SWG | 1.72 | 7 | 0.56 | 1.7 | 14 | 1.98 |
7/22 SWG | 2.77 | 7 | 0.71 | 2.1 | 28 | 3.19 |
7/21 SWG | 3.97 | 7 | 0.85 | 2.6 | 31 | 4.57 |
7/20 SWG | 4.45 | 7 | 0.90 | 2.7 | 35 | 5.12 |
7/19 SWG | 5.50 | 7 | 1.00 | 3.0 | 43 | 6.32 |
7/18 SWG | 8.59 | 7 | 1.25 | 3.8 | 67 | 9.88 |
7/17 SWG | 10.78 | 7 | 1.40 | 4.2 | 84 | 12.35 |
7/16 SWG | 14.07 | 7 | 1.60 | 4.8 | 110 | 16.20 |
7/15 SWG | 17.81 | 7 | 1.80 | 5.4 | 140 | 20.50 |
7/14 SWG | 21.99 | 7 | 2.00 | 6.0 | 170 | 25.30 |
7/13 SWG | 30.62 | 7 | 2.36 | 7.1 | 240 | 35.20 |
7/12 SWG | 38.61 | 7 | 2.65 | 8.0 | 300 | 44.40 |
7/11 SWG | 49.48 | 7 | 3.00 | 9.0 | 392 | 56.90 |
54.55 | 7 | 3.15 | 9.5 | 430 | 62.75 | |
7/10 SWG | 58.07 | 7 | 3.25 | 9.8 | 460 | 66.80 |
7/9 SWG | 73.24 | 7 | 3.65 | 11.0 | 570 | 84.20 |
7/8 SWG | 87.96 | 7 | 4.00 | 12.0 | 690 | 101.00 |
7/7 SWG | 99.30 | 7 | 4.25 | 12.8 | 780 | 114.00 |
7/6 SWG | 124.04 | 7 | 4.75 | 14.0 | 970 | 142.70 |
19/19 SWG | 14.92 | 19 | 1.00 | 5.0 | 120 | 17.16 |
19/18 SWG | 23.32 | 19 | 1.25 | 6.3 | 180 | 26.81 |
19/17 SWG | 29.25 | 19 | 1.40 | 7.0 | 230 | 33.64 |
19/16 SWG | 38.20 | 19 | 1.60 | 8.0 | 300 | 43.93 |
19/14 SWG | 59.69 | 19 | 2.00 | 10.0 | 470 | 68.64 |
93.27 | 19 | 2.50 | 12.5 | 730 | 107.30 | |
9/11 SWG | 134.30 | 19 | 3.00 | 15.0 | 1050 | 154.50 |
188.06 | 19 | 3.55 | 17.8 | 1470 | 216.30 | |
19/8 SWG | 238.76 | 19 | 4.00 | 20.0 | 1870 | 274.60 |
336.69 | 19 | 4.75 | 23.8 | 2630 | 387.20 |
