| Place of Origin: | Anhui,China |
| Brand Name: | Litong Global |
| Certification: | ISO9001&SGS&Other 3rd Party Inspection Resport |
| Model Number: | LT-1510191 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |

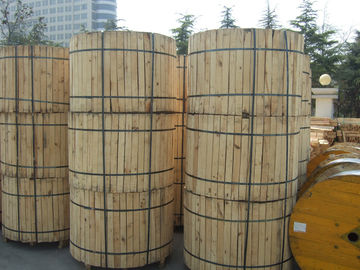

| Packaging Details: | On Drum |
| Delivery Time: | 10 days after confirmed order or as per order quantity |
| Payment Terms: | TT/LC |
| Supply Ability: | 1000KMS/Day |
| Steel Grade: | High Carbon Wire Rod | Wire Gauge: | 10-800MM2 |
|---|---|---|---|
| Type: | Aluminium Clad Steel Wire | Alloy Or Not: | Non-alloy |
| Application: | Overhead Transmission Line | Standard: | AISI|ASTM|BS|DIN|GB|JIS |
| High Light: | acsr panther conductor,overhead line conductor |
||
ACSR Technical Charcters Based on Standard BS 215 Part 2
|
Code Name |
Cross Section |
Stranding and Wires Dia. |
Overall Dia. |
Weight |
Rated strenth |
|||
|
|
AL |
ST |
Total |
AL |
ST |
mm |
Kg/km |
KN |
|
|
Mm2 |
mm |
||||||
|
Mole |
10.62 |
1.77 |
12.39 |
6/1.5 |
1/1.5 |
4.5 |
42.8 |
4.14 |
|
Squirrel |
20.94 |
3.49 |
24.23 |
6/2.11 |
1/2.11 |
6.33 |
84.7 |
7.87 |
|
Gophel |
26.24 |
4.37 |
30.62 |
6/2.36 |
1/2.36 |
7.08 |
106 |
9.58 |
|
Weasel |
31.61 |
5.27 |
36.88 |
6/2.59 |
1/2.59 |
7.77 |
127.6 |
11.38 |
|
Fox |
36.66 |
6.11 |
42.77 |
6/2.79 |
1/2.79 |
8.37 |
148.1 |
13.21 |
|
Ferret |
42.41 |
7.07 |
49.48 |
6/3.0 |
1/3.0 |
9.00 |
171.2 |
15.27 |
|
Rabbit |
52.88 |
8.81 |
61.7 |
6/3.35 |
1/3.35 |
10.1 |
213.5 |
18.42 |
|
Minik |
63.18 |
10.5 |
73.71 |
6/3.36 |
1/3.66 |
11 |
254.9 |
21.67 |
|
Skunk |
63.48 |
36.9 |
100.5 |
12/2.59 |
7/2.59 |
13 |
463 |
52.79 |
|
Beaver |
74.82 |
12.5 |
87.29 |
6/3.99 |
1/3.99 |
12 |
302.9 |
25.76 |
|
Horse |
73.37 |
42.8 |
116.2 |
12/2.79 |
7/2.79 |
14 |
537.3 |
61.26 |
|
Racoon |
79.20 |
13.1 |
92.4 |
6/4.09 |
1/4.09 |
12.3 |
318.3 |
27.06 |
|
Otter |
83.88 |
14 |
97.86 |
6/4.22 |
1/4.22 |
12.7 |
338.8 |
28.81 |
|
Cat |
95.40 |
15.9 |
111.3 |
6/4.5 |
1/4.5 |
13.5 |
385.3 |
32.76 |
|
Hare |
105 |
17.5 |
122.5 |
6/4.72 |
1/4.72 |
14.2 |
423.8 |
36.04 |
|
Dog |
105 |
13.6 |
118.5 |
6/4.72 |
7/4.72 |
14.2 |
394 |
32.65 |
|
Coyote |
131.7 |
20.1 |
151.8 |
26/2.54 |
7/1.91 |
15.9 |
520.7 |
45.86 |
