680/85 Bare Aluminum Acsr Core Wire DC Cable Current For River Crossings

680/85 Bare Aluminum Acsr Core Wire DC Cable Current For River Crossings

    • 680/85 Bare Aluminum Acsr Core Wire DC Cable Current For River Crossings
    • 680/85 Bare Aluminum Acsr Core Wire DC Cable Current For River Crossings
  • 680/85 Bare Aluminum Acsr Core Wire DC Cable Current For River Crossings

    Product Details:

    Place of Origin: An,China
    Brand Name: Litong Global
    Certification: 3C&ISO9001&China National Center for Quality Supervision and Test of Electric Wire &Cab
    Model Number: LT-1507291

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Price: Negotiable

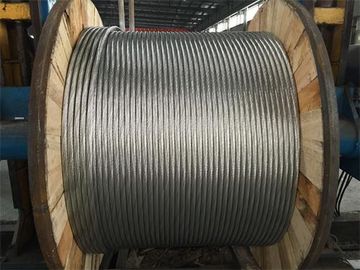

    Packaging Details: on wooden drum or steel drum or as per customers' requests
    Delivery Time: 18days after confirmed ACSR Conductor
    Payment Terms: TT/LC
    Supply Ability: 1000KM/day
    Contact Now
    Detailed Product Description
    Conductor Material: Aluminum Application: Overhead Tranmission Line
    Material: Aluminium 1350&Galvanized Steel Core Current: DC Cable
    H.S.Code: 7614100000 Tender Cooperation: Welcome
    OEM Service: Accept
    High Light:

    acsr panther conductor

    ,

    overhead line conductor



    680/85 Bare ACSR Conductor

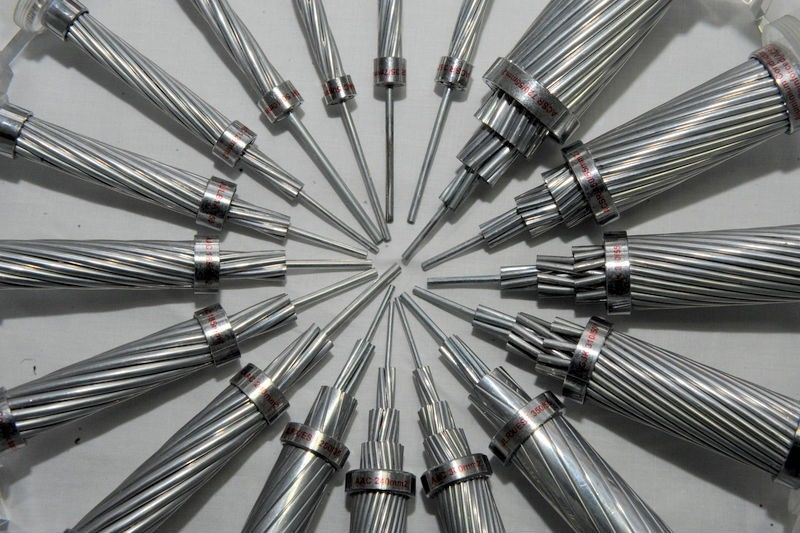

    Construction:

    • Aluminum alloy 1350-H-19 wires, concentrically stranded about a steel core. Core wire for ACSR is available with class A, B, or C galvanizing; "aluminized" aluminum coated (AZ); or aluminum-clad (AW).
    • Additional corrosion protection is available through the application of grease to the corer or infusion of the complete cable with grease.

    Application:

    Used as bare overhead transmission cable and as primary and secondary distribution cable. ACSR offers optimal strength for line design. Variable steel core stranding enables desired strength to be achieved without sacrificing ampacity.

    Specifications:

    ACSR bare conductor meets or exceeds the following ASTM specifications:

    • ASTM B-230 (Aluminum wire, 1350-H19 for electrical purposes).
    • ASTM B-231 (Aluminum conductors, Concentric-lay-stranded).
    • ASTM B-232 (Aluminum conductors, Concentric-lay-stranded, Coated steel reinforced [ACSR]).
    • ASTM B-341 (Aluminum-coated steel core wire for aluminum conductors, Steel reinforced [ACSR/AZ]).
    • ASTM B-498 (Zinc-coated steel core wire for aluminum conductors, steel reinforced [ACSR/AZ]).
    • ASTM B-500 (Zinc-coated and aluminum coated stranded steel core for aluminum conductors, steel reinforced [ACSR]).



    • Notes:
    • Resistance is calculated using ASTM standard increments of stranding and metal conductivity of 61.2% IACS for EC (1350) and 8% IACS for steel. AC (60Hz) resistance includes current dependent hysteresis loss factor for 1 and 3 layer constructions.
    • Current ratings are based on 75oC conductor temperature, 25oC ambient, 2ft/s wind, 96/watts/sq.ft
