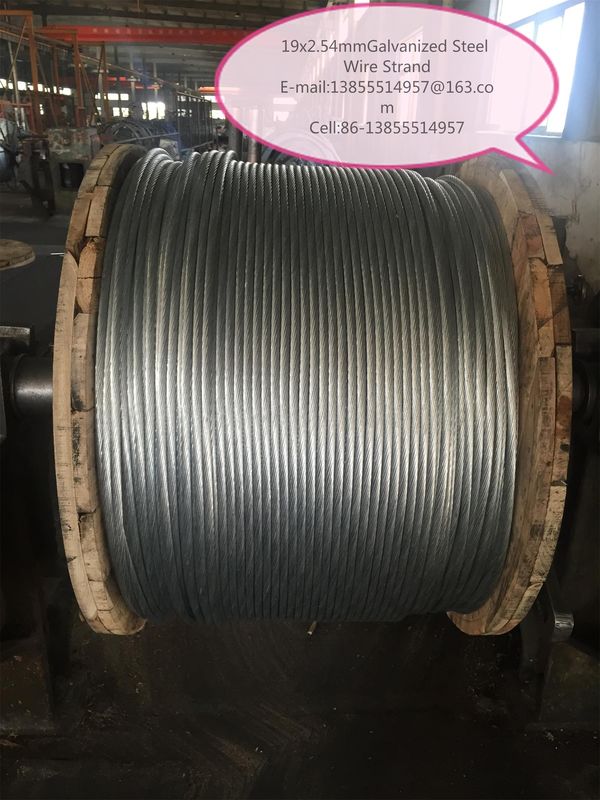

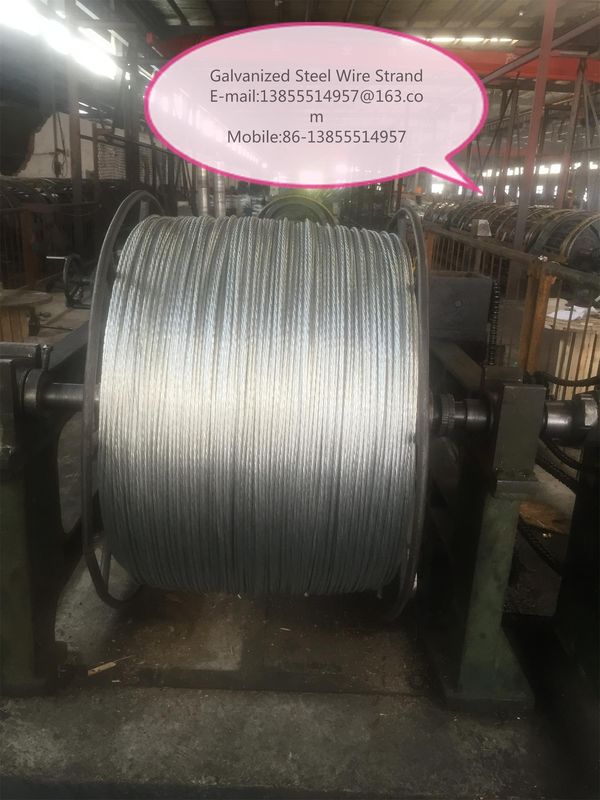

Suspension Strand 1 4 Inch Galvanized Steel Messenger Cable With ASTM A 475, EHS

Suspension Strand 1 4 Inch Galvanized Steel Messenger Cable With ASTM A 475, EHS

  • High Light

    overhead earth wire

    ,

    galvanised steel rope

  • Steel Grade
    High Carbon Wire Rod
  • Wire Gauge
    1.0-4.8mm
  • Type
    Galvanized
  • Alloy Or Not
    Non-alloy
  • Special Use
    Free Cutting Steel
  • Application
    ACSR, Ground Wire, Suspension Bracket, Communication Cable, Stay Wire.
  • Standard
    AISI|ASTM|BS|DIN|GB|JIS
  • Place of Origin
    Anhui,China
  • Brand Name
    Litong Global
  • Certification
    ISO9001-2008
  • Model Number
    LT-160510
  • Minimum Order Quantity
    Negotiable
  • Price
    Negotiable
  • Packaging Details
    In Coil or on Drum
  • Delivery Time
    10 days after confirmed order
  • Payment Terms
    TT/LC
  • Supply Ability
    400tons/day

Suspension Strand 1 4 Inch Galvanized Steel Messenger Cable With ASTM A 475, EHS

BS EN 50189:2000(FOR ST1A)

Nominal Diameter

mm

Tolerance

Stress at 1%

extension

Tensile Strength

Elongation on 250mm

Wrapping Test

No of torsion

twists

Zinc-coating

Over

Up to and including

mm

N/mm2

N/mm2

%





Min Mass of Zinc

Mia. No. of one minate dips

Min.

Min.

Min.

*D

Min.

g/m2



1.57

1.75

-/+0.03

1170

1400

3.0

1

18

200

2

1.75

2.25

-/+0.03

1170

1400

3.0

1

18

210

2 1/2

2.25

2.75

-/+0.04

1140

1350

3.0

1

16

230

2 1/2

2.75

3.00

-/+0.05

1140

1350

3.5

1

16

230

3

3.00

3.50

-/+0.06

1110

1300

3.5

1

14

245

3 1/2

3.5

4.25

-/+0.06

1110

1300

4.0

1

12

260

3 1/2

4.25

4.75

-/+0.06

1110

1300

4.0

1

12

275

4

Hot dipped Galvanized Steel Wire&Strand with below features:



Hot dipped Galvanized steel wire with bright, clean and firm layer;



Hot dipped Galvanized steel wire with strong corrosion resistance;



Hot dipped Galvanized steel wire do the hot dip galvanizing vertical process;



Hot dipped Galvanized steel wire must ensure the zinc layer thickness





Hot dipped Galvanized Steel Wire & Strand with below application:



Hot dipped Galvanized steel wire can be used for Over Head Transmission Line,overhead power line, overhead aerial line;



Hot dipped Galvanized steel wire can be used for earth wire, ground wire;



Hot dipped Galvanized steel wire can be used for core of Aluminum Conductor Steel Reinforced(ACSR);



Hot dipped Galvanized steel wire can be used for fixed object or project;



Hot dipped Galvanized steel wire can be used for communication wires;



Hot dipped Galvanized steel wire can be used for bridge, suspension
