Small Gauge 3 8 Inch Galvanized Steel Wire Strand For Spring Steel Wire

Small Gauge 3 8 Inch Galvanized Steel Wire Strand For Spring Steel Wire

  • High Light

    overhead guy wire

    ,

    guy strand wire

  • Steel Grade
    Middle And High Carbon Wire Rod
  • Wire Gauge
    1.0-4.8mm
  • Type
    Galvanized
  • Alloy Or Not
    Non-alloy
  • Special Use
    Cold Heading Steel
  • Application
    Guy Wire,stay Wire,ACSR Conductor,rope Etc.
  • Standard
    AISI|ASTM|BS|DIN|GB|JIS
  • Place of Origin
    Anhui,China
  • Brand Name
    Litong Global
  • Certification
    ISO9001 and other 3rd party Inspection report
  • Model Number
    LT-160304
  • Minimum Order Quantity
    Negotiable
  • Price
    Negotiable

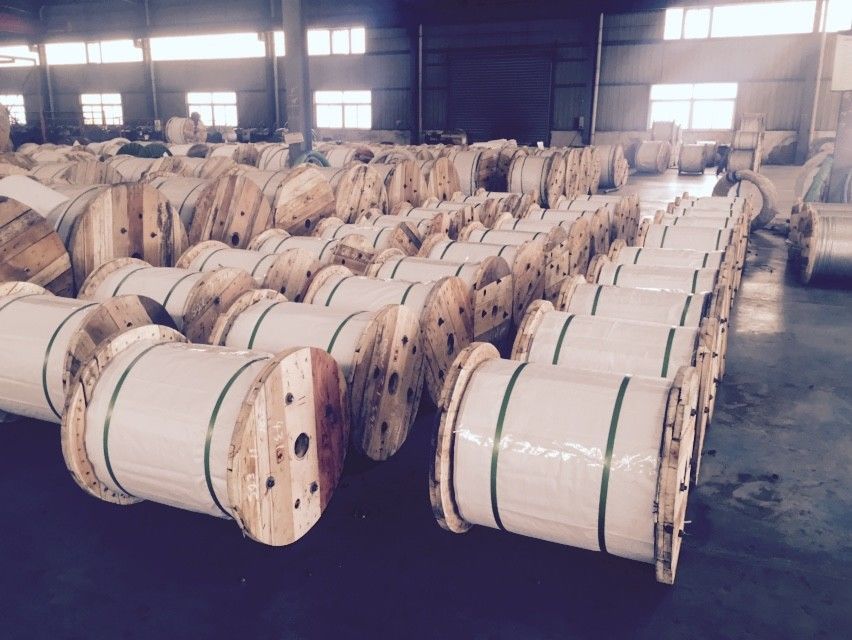

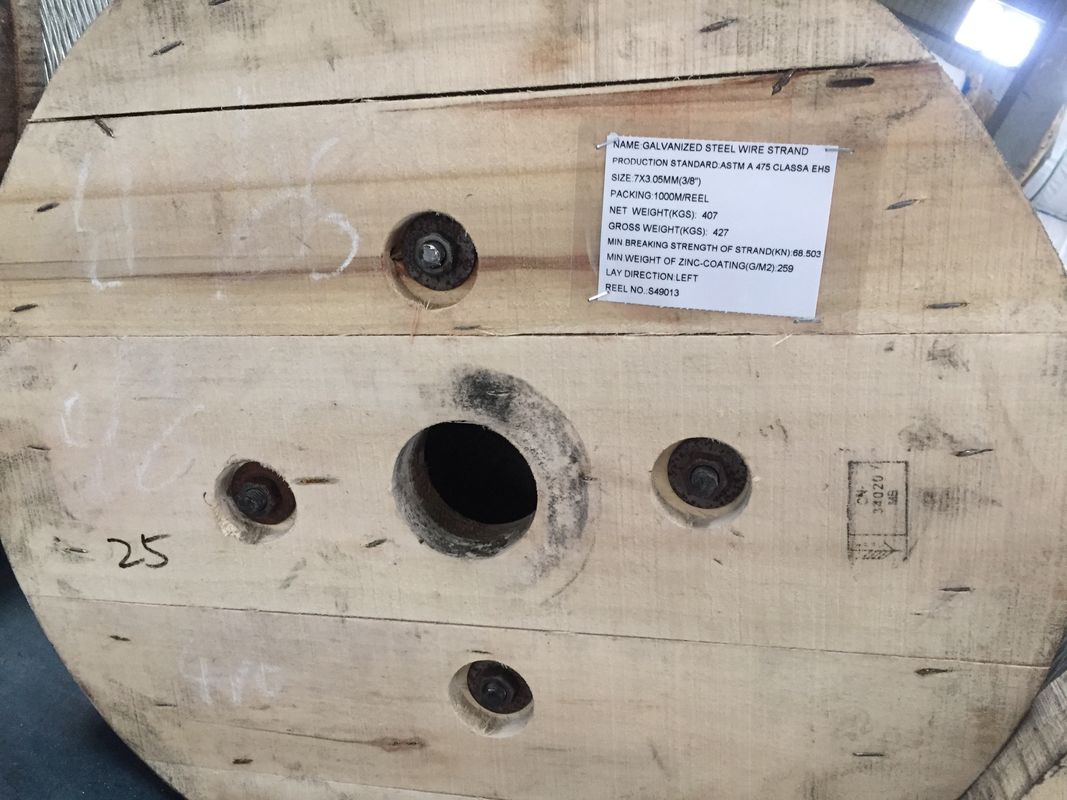

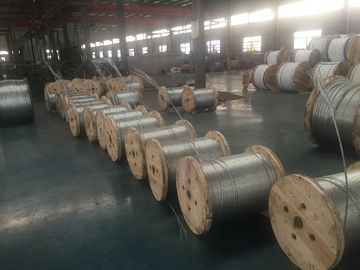

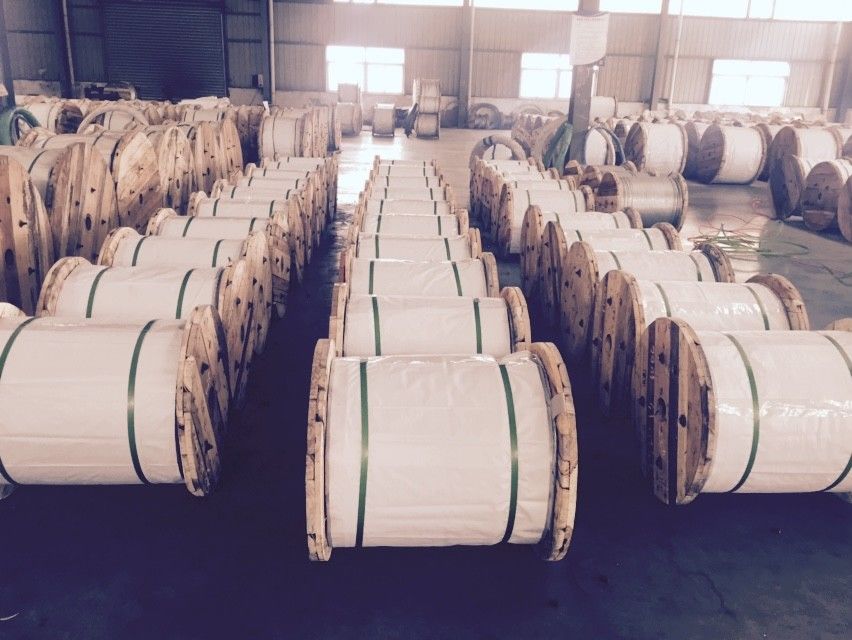

  • Packaging Details
    In Coil or on Drum
  • Delivery Time
    10 days after confirmed order
  • Payment Terms
    TT/LC
  • Supply Ability
    400tons/day

Small Gauge 3 8 Inch Galvanized Steel Wire Strand For Spring Steel Wire

Zinc-Coated(Galvanized) Steel Core Wire for Aluminum Conductors,Steel Reinforced(ACSR) As per ASTM B 498 Class A

Size

Tolerance

Zinc-coating

Min.Stress at 1% Extension

Min. Tensile Strength

Min.Elongation in 250mm

Packing

mm

mm

g/m2

MPA

MPA

%

KG/Coil

1.6-1.9

+0.04,-0.03

210

1310

1450

3

180-200

1.9-2.3

+0.04,-0.03

220

1310

1450

3

180-200

2.3-2.7

+0.05,-0.05

230

1280

1410

3.5

200-240

2.7-3.1

+0.05,-0.05

240

1280

1410

4

200-240

3.1-3.5

+0.08,-0.05

260

1240

1410

4

200-240

3.5-3.9

+0.08,-0.05

270

1170

1380

4

200-240

3.9-4.5

+0.1,-0.05

275

1170

1380

4

200-240

4.5-4.8

+0.1,-0.05

300

1170

1380

4

200-240


Galvanized Steel Wire Strand ASTM A-475
Number of Wire(Dia.)

Approx.Strand

Dia.

Siemem Martin Grade High Strength Grade

Extra-high

Strength Grade



Approx.Weight

  Inch mm KN KN KN kg/km
3/2.64 7/32 5.56 10.409 15.569 21.796 131
3/3.05 1/4 6.35 13.523 21.04 29.981 174
3/3.05 1/4 6.35 - - - 174
3/3.30 9/32 7.14 15.035 23.398 33.362 204
3/3.68 5/16 7.94 18.193 28.246 40.479 256
3/4.19 3/8 9.52 24.732 37.187 52.489 328
7/1.04 1/8 3.18 4.048 5.916 8.18 49
7/1.32 5/32 3.97 6.539 9.519 13.078 76
7/1.57 3/16 4.76 8.452 12.677 17.748 108
7/1.65 3/16 4.76 - - - 118
7/1.83 3/16 5.56 11.387 17.126 24.02 145
7/2.03 7/32 6.35 14.012 21.129 29.581 181
7/2.36 1/4 7.14 18.905 28.469 39.812 243
7/2.64 9/32 7.94 23.798 35.586 49.82 305
7/2.77 5/16 7.94 - - - 335
7/3.05 3/8 9.52 30.915 48.04 68.503 407
7/3.68 7/16 11.11 41.591 64.499 92.523 594
7/4.19 1/2 12.7 53.823 83.627 119.657 768
7/4.78 9/16 14.29 69.837 108.981 155.688 991
7/5.26 5/8 15.88 84.961 131.667 188.605 1211
19/2.54 1/2 12.7 56.492 84.961 118.768 751
19/2.87 9/16 12.49 71.616 107.202 149.905 948
19/3.18 5/8 15.88 80.513 124.995 178.819 1184
19/3.81 3/4 19.05 116.543 181.487 259.331 1719
19/4.50 7/8 22.22 159.691 248.211 354.523 2352
19/5.08 1 25.4 209.066 325.61 464.839 2384
37/3.63 1 25.4 205.508 319.827 456.832 3061
37/4.09 11/8 28.58 262 407.457 581.827 4006
37/4.55 11/4 31.75 324.72 505.318 721.502 4833
3/2.64 7/32 5.56 10.409 15.569 21.796 131
3/3.05 1/4 6.35 13.523 21.04 29.981 174
3/3.05 1/4 6.35 - - - 174
3/3.30 9/32 7.14 15.035 23.398 33.362 204
3/3.68 5/16 7.94 18.193 28.246 40.479 256
3/4.19 3/8 9.52 24.732 37.187 52.489 328
7/1.04 1/8 3.18 4.048 5.916 8.18 49
7/1.32 5/32 3.97 6.539 9.519 13.078 76
7/1.57 3/16 4.76 8.452 12.677 17.748 108
7/1.65 3/16 4.76 - - - 118
7/1.83 3/16 5.56 11.387 17.126 24.02 145
7/2.03 7/32 6.35 14.012 21.129 29.581 181
7/2.36 1/4 7.14 18.905 28.469 39.812 243
7/2.64 9/32 7.94 23.798 35.586 49.82 305
7/2.77 5/16 7.94 - - - 335
7/3.05 3/8 9.52 30.915 48.04 68.503 407
7/3.68 7/16 11.11 41.591 64.499 92.523 594
7/4.19 1/2 12.7 53.823 83.627 119.657 768
7/4.78 9/16 14.29 69.837 108.981 155.688 991
7/5.26 5/8 15.88 84.961 131.667 188.605 1211
19/2.54 1/2 12.7 56.492 84.961 118.768 751
19/2.87 9/16 12.49 71.616 107.202 149.905 948
19/3.18 5/8 15.88 80.513 124.995 178.819 1184
19/3.81 3/4 19.05 116.543 181.487 259.331 1719
19/4.50 7/8 22.22 159.691 248.211 354.523 2352



Galvanized Steel Wire Strand BS183:1972

Number of

Wires/Dia.

Approx.Strand

Dia.

Minimum Breaking Load of Strand

Approx

Weight

Grade 350 Grade 480 Grade 700 Grade 850 Grade 1000 Grade 1150 Grade 1300
  mm kN kN kN kN kN kN kN Kg/km
3/1.80 3.9 2.65 3.66 - - - - - 60
3/2.65 5.7 5.8 7.95 - - - - - 130
3/3.25 7 8.7 11.95 - - - - - 195
3/4.00 8.6 13.2 18.1 - - - - - 295
4/1.80 4.4 3.55 4.9 - - - - - 80
4/2.65 6.4 7.7 10.6 - - - - - 172
4/3.25 7.9 11.6 15.9 - - - - - 260
4/4.00 9.7 17.6 24.1 35.2 - - - - 390
5/1.50 4.1 3.1 4.24 6.18 - - - - 69
5/1.80 4.9 4.45 6.1 8.9 - - - - 95
5/2.65 7.2 9.65 13.25 19.3 - - - - 220
5/3.25 8.8 14.5 19.9 29 - - - - 320
5/4.00 10.8 22 30.15 43.95 - - - - 490
7/0.56 1.7 0.6 0.83 1.2 - 1.7 1.98 2.24 14
7/0.71 2.1 0.97 1.33 1.94 - 2.75 3.19 3.6 28
7/0.85 2.6 1.39 1.9 2.8 - 3.95 4.57 5.15 31
7/0.90 2.7 1.55 2.14 3..1 - 4.45 5.12 5.8 35
7/1.00 3 1.92 2.64 3.85 - 5.5 6.32 7.15 43
7/1.25 3.8 3.01 4.1 6 - 8.55 9.88 11.15 67
7/1.40 4.2 3.75 5.17 7.54 9.16 10.75 12.35 14 84
7/1.60 4.8 4.9 6.75 9.85 11.95 14.1 16.2 18.3 110
7/1.80 5.4 6.23 8.55 12.45 - 17.8 20.5 23.2 140
7/2.00 6 7.7 10.55 15.4 - 22 25.3 28.6 170
7/2.36 7.1 10.7 14.7 21.4 - 30.6 35.2 39.8 240
7/2.65 8 13.5 18.5 27 - 38.6 44.4 50.2 300
7/3.00 9 17.3 23.75 34.65 - 49.5 56.9 64.3 392
7/3.15 9.5 19.1 26.2 38.2 - 54.55 62.75 70.9 430
7/3.25 9.8 20.3 27.85 40.65 - 58.05 66.8 75.5 460
7/3.65 11 25.6 35.15 51.25 - 73.25 84.2 95.2 570
7/4.00 12 30.9 42.2 61.6 - 88 101 114 690
7/4.25 12.8 34.75 47.65 69.5 - 99.3 114 129 780
7/4.75 14 43.4 59.45 86.8 - 124 142.7 161.3 970
19/1.00 5 5.22 7.16 10.45 - 14.92 17.16 19.4 120
19/1.25 6.3 8.16 11.19 16.32 - 23.32 26.81 30.31 180
19/1.40 7 10.24 14.04 20.47 - 29.25 33.64 38.02 230
19/1.60 8 13.37 18.35 26.75 - 38.2 43.93 49.66 300
19/2.00 10 20.9 28.65 41.78 50.74 59.69 68.64 77.6 470
19/2.50 12.5 32.65 44.8 65.29 79.28 93.27 107.3 121.3 730
19/3.00 15 47 64.5 94 114.1 134.3 154.5 174.6 1050
19/3.55 17.8 65.8 90.27 131.6 159.9 188 216.3 244.5 1470
19/4.00 20 83.55 114.6 167.1 203 238.7 274.6 310.4 1870
19/4.75 23.8 117.85 161.4 235.7 286 336.7 387.2 437.7 2630
7/1.60 4.8 4.9 6.75 9.85 11.95 14.1 16.2 18.3 110
7/1.80 5.4 6.23 8.55 12.45 - 17.8 20.5 23.2 140
7/2.00 6 7.7 10.55 15.4 - 22 25.3 28.6 170
7/2.36 7.1 10.7 14.7 21.4 - 30.6 35.2 39.8 240
7/2.65 8 13.5 18.5 27 - 38.6 44.4 50.2 300
7/3.00 9 17.3 23.75 34.65 - 49.5 56.9 64.3 392
7/3.15 9.5 19.1 26.2 38.2 - 54.55 62.75 70.9 430
7/3.25 9.8 20.3 27.85 40.65 - 58.05 66.8 75.5 460
7/3.65 11 25.6 35.15 51.25 - 73.25 84.2 95.2 570
7/4.00 12 30.9 42.2 61.6 - 88 101 114 690
7/4.25 12.8 34.75 47.65 69.5 - 99.3 114 129 780
7/4.75 14 43.4 59.45 86.8 - 124 142.7 161.3 970
19/1.00 5 5.22 7.16 10.45 - 14.92 17.16 19.4 120
19/1.25 6.3 8.16 11.19 16.32 - 23.32 26.81 30.31 180
19/1.40 7 10.24 14.04 20.47 - 29.25 33.64 38.02 230
19/1.60 8 13.37 18.35 26.75 - 38.2 43.93 49.66 300
19/2.00 10 20.9 28.65 41.78 50.74 59.69 68.64 77.6 470
19/2.50 12.5 32.65 44.8 65.29 79.28 93.27 107.3 121.3 730
19/3.00 15 47 64.5 94 114.1 134.3 154.5 174.6 1050
19/3.55 17.8 65.8 90.27 131.6 159.9 188 216.3 244.5 1470
19/4.00 20 83.55 114.6 167.1 203 238.7 274.6 310.4 1870
