Black ASTM A416 15.24mm PC Steel Wire Strand Grade 270 ISO9001 Certificated

Certification
Good quality Galvanized Steel Wire Strand for sales
Good quality Galvanized Steel Wire Strand for sales
I'm Online Chat Now

Black ASTM A416 15.24mm PC Steel Wire Strand Grade 270 ISO9001 Certificated

China Black ASTM A416 15.24mm PC Steel Wire Strand Grade 270 ISO9001 Certificated supplier

Large Image :  Black ASTM A416 15.24mm PC Steel Wire Strand Grade 270 ISO9001 Certificated

Product Details:

Place of Origin: Anhui,China
Brand Name: Litong Global
Certification: ISO9001-2008
Model Number: LT-170206

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Standard export seaworthy packing 2.0-3.5tons/coil on 2 pallets
Supply Ability: 800tons/day
Detailed Product Description
Model NO.:: Low Relaxation Material:: Steel Wire
Cross Sectional Shape:: Round Application:: Construction Wire Mesh, Protecting Mesh, Fence Mesh, Decorative Mesh, Screen, Gabion Mesh, Window Curtain, Barbecue Wire Mesh, Filter, Cages
Type:: Steel Coil Surface Treatment:: Black
Metal Wire Drawing:: Cold Drawing Product Name:: 7 Wire PC Strand Form Factory
Item:: Low Relaxation PC Strand Grade:: 270(1860MPa)
Apply:: Construction Tensile Grade:: ≥1860MPa
Coil Weight:: 2.0t-3.5t Certificate:: ISO 9001, SGS
Sample:: Free HS Code:: 73121000

HIGH STRENGTH 1860 MPA LOW RELAXATION PC STRAND



PT CABLE: POST-TENSIONED STEEL CABLE
PC STRAND: PRE-STRESSED CONCRETE STEEL STRAND
Structure: 7 wire
Diameter: 12.5mm, 12.7mm, 12.9mm, 15.2mm, 15.7mm, 17.8mm, 18.9mm, 21.6mm, 21.8mm

Feature: low relaxation, stress-relieved, high tensile strength.
Raw Material: high carbon steel wire rod
Steel Grade: SWRH77B, SWRH82B
Standards: ASTM A416, AS4672, ABNT NBR 7483:2008, BS5896-1980, EN10138-3, GB/T5224-2003, IS6006, JISG3536

7-Wire Uncoated Steel Strand for Prestressed Concrete



ASTM A 416 Low Relaxation
Grade
MPa
[ksi]
Nominal
Diameter of
Strand
mm [in.]

Min. Breaking
Strength

kN [lbf]

Steel Area
of Strand

mm2 [in.2]

Weight of
Strand

kg/km [lb/kft]

Min. load
@1% ext.

kN[lbf]

Min.
Elongation

%



1860
[270]

9.53 [0.375] 102.3 [23 000] 54.8 [0.085] 432 [290] 92.1 [20 700]





3.5 (l≥600mm)

11.11 [0.438] 137.9 [31 000] 74.2 [0.115] 582 [390] 124.1 [27 900]
12.70 [0.500] 183.7 [41 300] 98.7 [0.153] 775 [520] 165.3 [37 170]
13.20 [0.520] 200.2 [45 000] 107.7 [0.167] 844 [568] 180.1 [40 500]
15.24 [0.600] 260.7 [58 600] 140.0 [0.217] 1102 [740] 234.6 [52 740]

Relaxation Properties
Initial Load of Specified Breaking Load 70% 80%
Max. Relaxation After 1000hrs @20±2 2.5% 3.5%




7-Wire Uncoated Steel Strand for Prestressed Concrete as per GB/T5224

Min.Breaking Strength

Nominal

Dia.

Dia.

Tolerance

Norminal

Steel

Area

Nominal Weight

Min.

Breaking Load

Min.Load

at 1%Extension

Min.Elongation

Lo≥610mm

0.7 G.U.T.S

1000hNorminal Relaxation

MPA mm mm Mm2 Kg/Km KN KN % %
1860 9.50 +0.30,-0.15 54.8 432 102 86.6





≥3.5





≤2.5

  11.10 74.2 580 138 117
  12.70





+0.40,-0.20

98.7 775 184 156
  15.20 140 1101 259 220
  15.70 150 1178 279 251
  17.80 191 1500 353 318
1960 12.70 +0.40,-0.20 98.7 775 193 174 ≥3.5 ≤2.5
  15.20 140 1101 274 247


Tensile Strength: 1860Mpa, 1960Mpa
Relaxation on 1000 hours: 2.0% max
Elongation at breakage: 4.0% min

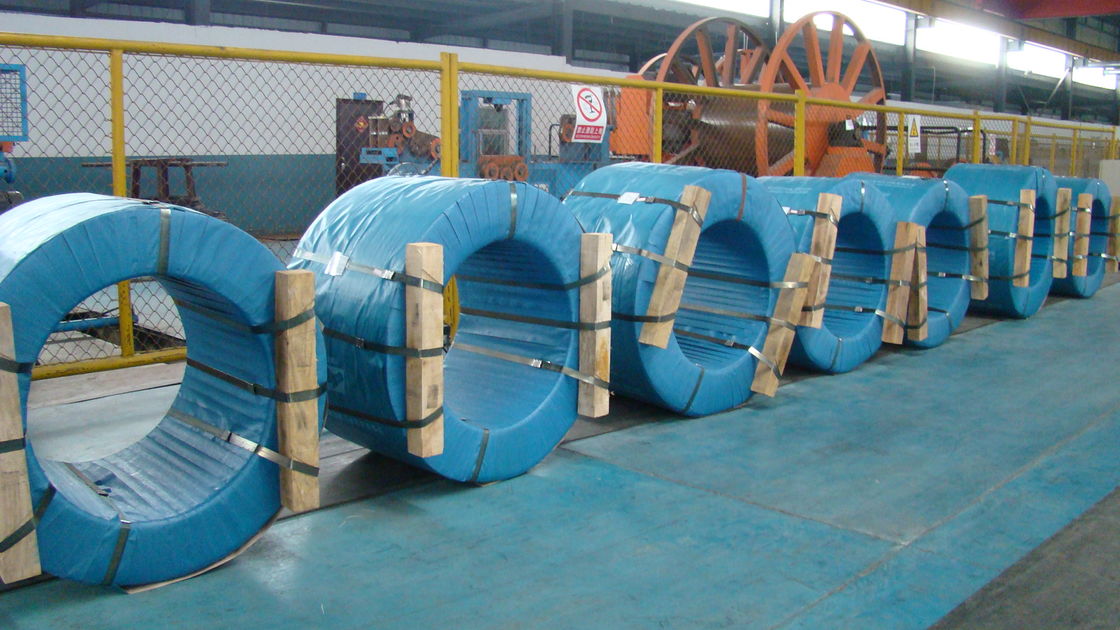

Export Packing: baling strip, inside plastic cover, outside PP packing cloth
Package Weight: 2000-3500kg/coil


Used in all segments of the vrious construction industries including but not limited to

  1. Residential
  2. Commercial and High-rise Buildings
  3. Packing Garages
  4. Pre-cast
  5. Bridges
  6. Highways
  7. Airport
  8. Liquid Natural Gas Tanks
  9. Ground Support
  10. Mining and Stay Cable Bridge

Our PC Strand projects.

High Speed Rail Projects

One of our core focus areas is high speed rail projects.Our technical capabilities,financial viability and superior execution skilles ensures cutting-edge project development and implementation.

Black ASTM A416 15.24mm PC Steel Wire Strand Grade 270 ISO9001 Certificated

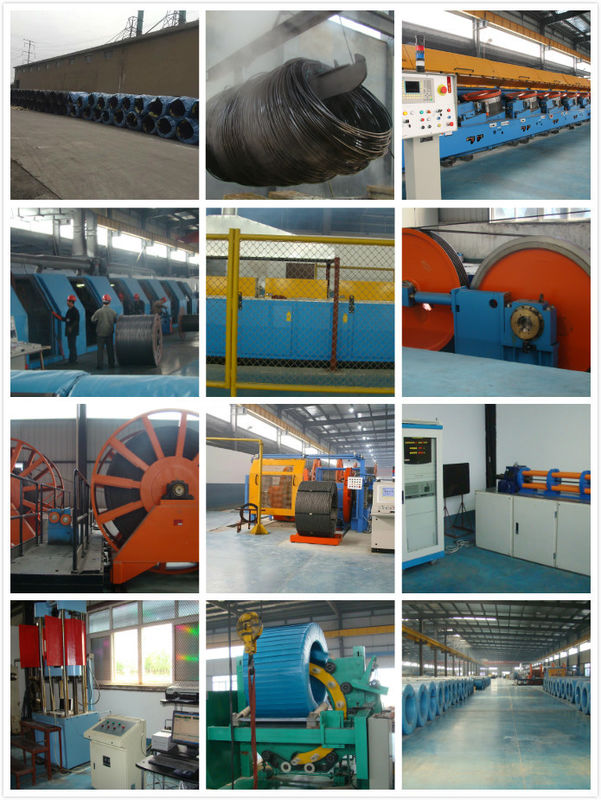

Production process:

Black ASTM A416 15.24mm PC Steel Wire Strand Grade 270 ISO9001 Certificated

Certificates:

Black ASTM A416 15.24mm PC Steel Wire Strand Grade 270 ISO9001 Certificated

Exhibitions

Black ASTM A416 15.24mm PC Steel Wire Strand Grade 270 ISO9001 Certificated

Customers Visiting

Black ASTM A416 15.24mm PC Steel Wire Strand Grade 270 ISO9001 Certificated

Trade Terms:
Min Order Qty: 1FCL / 25T
Delivery Time: 10-15 days
Price Terms: FOB CFR CIF
Payment Terms: TT / LC





FAQ

Q:If found the product with substardard quality.How can you solve it?
A:The buyer will be required to submit proof file,picture,ideo of the said substandard cargo send to us first. We can also send our engineer to your filed to check it directly,if need any.



Q:If sample available?
A:Yes,we can offer sample free of charge.But the express freight should be on buyer’s account.



Q:If I order big quantity,what’s the good price?
A:Please send the details enquiry to us ,such as the Item Number,Quantity for each item, Quality request,Logo,Payment Terms,Transport method,Discharge place etc.We will make the accurate quotation to you as soon as possible.


If you are interested in our products, pls feel free to tell me the diameter or nominal section area or the nick name to me. Then,I will send our best quotation to you.
