High Tensile Strength Zinc Coated Steel Wire Strand 7/3.05mm 7/3.45mm , ISO 9001-2008 Certificate

High Tensile Strength Zinc Coated Steel Wire Strand 7/3.05mm 7/3.45mm , ISO 9001-2008 Certificate

    • High Tensile Strength Zinc Coated Steel Wire Strand 7/3.05mm 7/3.45mm , ISO 9001-2008 Certificate
    • High Tensile Strength Zinc Coated Steel Wire Strand 7/3.05mm 7/3.45mm , ISO 9001-2008 Certificate
    • High Tensile Strength Zinc Coated Steel Wire Strand 7/3.05mm 7/3.45mm , ISO 9001-2008 Certificate
    • High Tensile Strength Zinc Coated Steel Wire Strand 7/3.05mm 7/3.45mm , ISO 9001-2008 Certificate
  • High Tensile Strength Zinc Coated Steel Wire Strand 7/3.05mm 7/3.45mm , ISO 9001-2008 Certificate

    Product Details:

    Place of Origin: Anhui,China
    Brand Name: Litong Global
    Certification: ISO9001-2008
    Model Number: LT-055

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Price: Negotiable

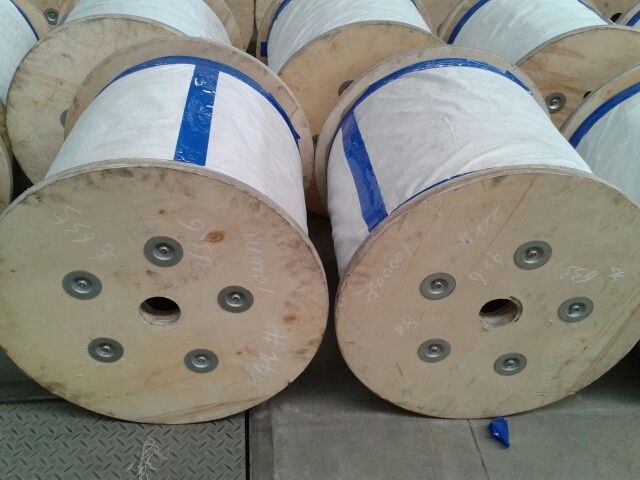

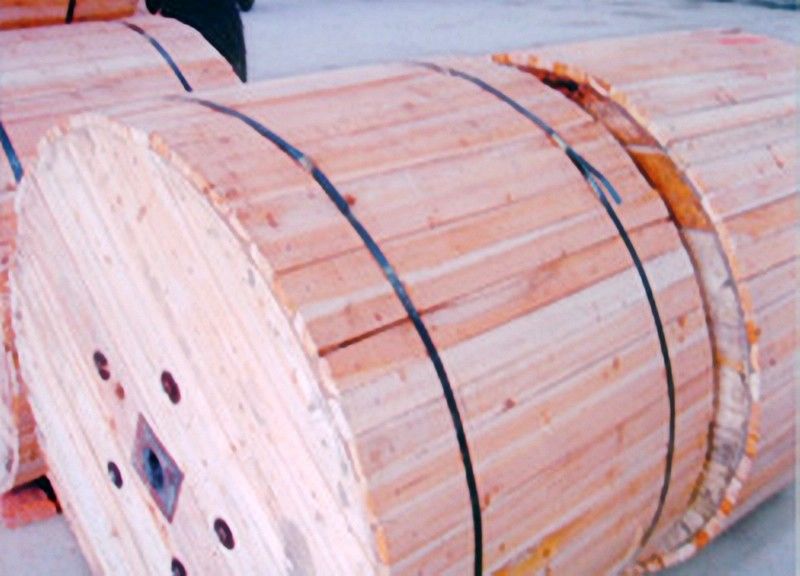

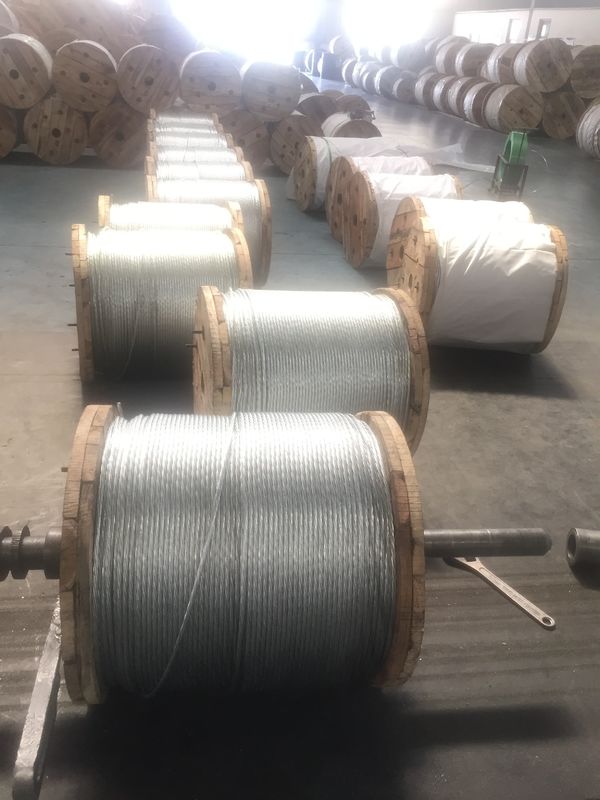

    Packaging Details: Standard export packing on drum
    Supply Ability: 400tons/day
    Contact Now
    Detailed Product Description
    Model NO.:: Galvanized Steel Wire Conductor Type:: Stranded
    Application:: Overhead, Guy Wire,Stay Wire Conductor Material:: Steel
    Standard:: ASTM A475,BS183,IEC,JIS G,GB/T Transport Package:: Reel, Wooden Drum
    High Light:

    anti static wire

    ,

    galvanized wire cable

    Product Description
    Hot dipped galvanized steel wire steel wire cable for ABC Cable
    GSW (Galvanized Steel Wire)

    1. Standards
    ASTM A475: Standard Specification for Zinc-Coated Steel Wire Strand
    ASTM B 498: Standard Specification for Zinc-Coated (Galvanized) Steel Core Wire for Aluminum Conductors, Steel Reinforced (ACSR)
    BS183: Specification for General Purpose Galvanized Steel Wire Strand
    BS 50189: Conductors ofr overhead lines-Zinc coated steel wires
    IEC 60888: Zinc-coated steel wires for stranded conductors
    DIN 48200: Wires for stranded conductors
    JIS G 3537: Zinc-coated steel wire strands
    AS 1222.1: Steel conductors and stays-Bare overhead

    2.Technical Data
    Hot-Dipped Galvanized steel wire
    Diameter:1.57~4.8mm
    Zinc Coating:150-400g/m2 ASTM class A.
    Tensile Strength:900-1720 mpa.
    Intensity Level:General,High,Very High.
    Min.No. of 360° twists:10~16.
    Construction:1×7,1×19.

    3. Application
    Used as overhead ground wire or static wire on transmission lines, as pole or structure guy wires, and as messenger cable, fields and pastures division, animal containment.

    4.Standard ASTM A 475
    Number of
    wires/
    Nominal dia.
    Approx.
    strand dia.
    Utilities grade Common grade Siemens-
    martingrade
    High-
    strength grade
    Extra high- strength grade Approx.
    weight
    No./mm Inch mm kN kN kN kN kN kg
    3/2.64 7/32 5.56 - 6.228 10.409 15.569 21.796 131
    3/3.05 1/4 6.35 14.012 8.274 13.523 21.040 29.981 174
    3/3.05 1/4 6.35 20.017 - - - - 174
    3/3.30 9/32 7.14 - 9.252 15.035 23.398 33.362 204
    3/3.68 5/16 7.94 28.913 11.076 18.193 28.246 40.479 255
    3/4.19 3/8 9.52 37.810 14.813 24.732 37.187 52.489 328
    7/1.04 1/8 3.18 - 2.402 4.048 5.916 8.140 48
    7/1.32 5/32 3.97 - 3.870 6.539 9.519 13.078 76
    7/1.57 3/16 4.76 - 5.115 8.452 12.677 17.748 109
    7/1.65 3/16 4.76 10.676   - - - 119
    7/1.83 7/32 5.56 - 6.850 11.387 17.126 24.020 146
    7/2.03 1/4 6.35 - 8.452 14.012 21.129 29.581 180
    7/2.36 9/32 7.14 20.462 11.432 18.905 28.469 39.812 244
    7/2.64 5/16 7.94 - 14.234 23.798 35.586 49.820 305
    7/2.77 5/16 7.94 26.689 - - - - 335
    7/3.05 3/8 9.52 51.155 18.905 30.915 48.040 68.503 407
    7/3.68 7/16 11.11 80.068 25.355 41.591 64.499 92.523 595
    7/4.19 1/2 12.70 111.206 32.917 53.823 83.627 119.657 770
    7/4.78 9/16 14.29 - 42.703 69.837 108.981 155.688 1000
    7/5.26 5/8 15.88 - 51.599 84.961 131.667 188.605 1211
    19/2.54 1/2 12.70 - 33.895 56.492 84.961 118.768 751
    19/2.87 9/16 12.49 - 42.881 71.616 107.202 149.905 949
    19/3.18 5/8 15.88 - 48.930 80.513 124.995 178.819 1186
    19/3.81 3/4 19.05 - 71.172 116.543 181.487 259.331 1721
    19/4.50 7/8 22.22 - 97.416 159.691 248.211 354.523 2356
    19/5.08 1 25.40 - 127.664 209.066 325.610 464.839 3089
    37/3.63 1 25.40 - 125.885 205.508 319.827 456.832 3065
    37/4.09   28.58 - 160.136 262.000 407.457 581.827 4010
    37/4.55 31.75 - 198.391 324.720 505.318 721.502 4840

    BS 183 standard
    Number of wires/Dia. Approx. Strand Dia. Minimum Breaking Load of Strand Approx.Weight
    Grade 350 Grade 480 Grade 700 Grade850 Grade 1000 Grade 1150 Grade 1300
      mm kN kN kN kN kN kN kN kg/km
    3/1.80 3.9 2.65 3.66 -         60
    3/2.65 5.7 5.8 7.95 -         130
    3/3.25 7 8.7 11.95 -       - 195
    3/4.00 8.6 13.2 18.1 -         295
    4/1.80 4.4 3.55 4.9 -         80
    4/2.65 6.4 7.7 10.6o -         172
    4/3.25 7.9 11.6 15.9 -         260
    4/4.00 9.7 17.6 24.1 35.2         390
    5/1.50 4.1 3.1 4.24 6.18       - 69
    5/1.80 4.9 4.45 6.1 8.9         95
    5/2.65 7.2 9.65 13.25 19.3       - 220
    5/3.25 8.8 14.5 19.9 29       - 320
    5/4.00 10.8 22 30.15 43.95         490
    7/O.56 1.7 0.6 0.83 1.2   1.7 1.98 2.24 14
    7/0 71 2.1 0.97 1.33 1 94   2.75 3.19 3.6 28
    7/0.85 2.6 1.39 1.9 2.8   3.95 4.57 5.15 31
    7/0.90 2.7 1.55 2.14 3.1   4.45 5.12 5.8 35
    7/l.00 3 1.92 2.64 3.85   5.5 6.32 7.15 43
    7/1.25 3.8 3.01 4.1 6   8.55 9.88 11.15 67
    7/1.40 4.2 3.75 5.17 7.54 9.16 10.75 12.35 14 84
    7/RS* 4.3 3.85 5.28 7.7 9.35 11 12.65 14.3 86
    7/1.60 4.5 4.9 6.75 9.85 11.95 14.1 16.2 18.3 110
    7/1.80 5.4 6.23 8.55 12.45 - 17.8 20.5 23.2 140
    7/2.00 6 7.7 10.55 15.4   22 25.3 28.6 170
    7/2.36 7.1 10.7 14.7 21.4   30.6 35.2 39.8 240
    7/2.65 8 13.5 18.5 27   38.6 44.4 50.2 300
    7/3.00 9 17.3 23.75 34.65   49.5 56.9 64.3 392
    7/3.15 9.5 19.1 26.2 38.2   54055 62.75 70.9 430
    7/3.25 9.8 20.3 27.85 40.65   58.05 66.8 75.5 460
    7/3.65 11 25.6 35.5 51.25   73.25 84.2 95.2 570
    7/4.00 12 30.9 42.2 61.6   88 101 114 690
    7/4.25 12.8 34.75 47.65 69.5   99.3 114 129 780
    7/4.75 14 43.4 59.45 86.8O   124 142.7 161.3 970
    19/1.00 5 5.22 7.16 10.45   14.92 17.16 19.4 120
    19/1.25 6.3 8.16 11 .19 16.32   23.32 26.81 30.31 180
    19/1.40 7 10.24 14.04 20.47   29.25 33.64 38.02 230
    19/1.60 8 13.37 18.35 26.75   38.2 43.93 49.66 300
    19/2.00 10 20.9 28.65 41.78 50.74 59.69 68.64 77.6 470
    19/2.50 12.5 32.65 44.8 65.29 79.28 93.27 107.3 121.3 730
    19/3.00 15 47 64.5 94 114.1 134.3 154.5 174.6 1050
    19/3.55 17.8 65.8 90.27 131.6 159.9 188 216.3 244.5 1470
    19/4.00 20 83.55 114.6 167.1 203 238.7 274.6 310.4 1870
    19/4.75 23.8 117.85 161.6 235.7 286 336.7 387.2 437.7 2630

    IEC 61089 standard
    Nominal area St code number Area/mm2 Number of wires Diameter/mm Linear Mass/(kg/km) Rated strength/kN Max.D.C Resistance
    (20ºC)/(Ω/km)
        JGIA JGIB JG2A JG3A
    30 4 27.1 7 2.22 6.66 213.3 36.3 33.6 39.3 43.9 7.1445
    40 6.3 42.7 7 2.79 8.36 335.9 55.9 51.7 60.2 67.9 4.5362
    65 10 67.8 7 3.51 10.53 553.2 87.4 80.7 93.5 103 2.8578
    85 12.5 84.7 7 3.93 11.78 666.5 109.3 100.8 116.9 128.8 2.2862
    100 16 108.4 7 4.44 13.32 853.1 139.9 129 199.7 164 1.7861
    100 16 108.4 19 2.7 13.48 857 142.1 131.2 152.9 172.4 1.7944
    150 25 169.4 19 3.37 16.85 1339.1 218.6 201.6 238.9 262.6 1.1484
    250 40 271.1 19 4.26 21.31 2141.6 349.7 322.6 374.1 414.1 0.7177
    250 40 271.1 37 3.05 21.38 2148.1 349.7 322.6 382.3 420.2 0.7196
    400 63 427 37 3.83 26.83 3383.2 550.8 508.1 589.3 649 0.4569



    FAQ

    1)What kind of certifications do you have?
     CCC, ISO9001-2000, SGS

    2)Which markets do you involve mainly in?
    Our products have been exported mainly to Africa, Middle East, South-east Asia, South America,Central America,North America, Europe ,Australia, etc.

    3)Which standards do you comply with when you produce the electrical wires and cables ?
    We are able to produce electrical wires and cables based on GB, JB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS, CSA, etc. Meanwhile, we can design and manufacture the cables according to the samples and technical specification the customer supply.

    6)What is the min.order quantity ?
    It depends on the type and size of electrical wires and cables. For some small electrical wires, 100 meters can be accepted .But for the power cables with medium or high voltage, that should comply with the property of installed equipments. Anyhow,we will try our best to solve the problem and meet with the requirement If you have special request.
