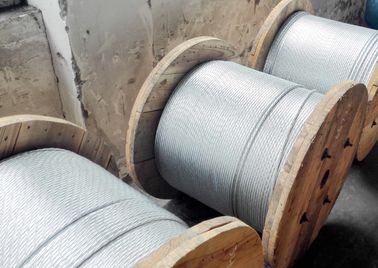

A3/8"(1*7)ASTM A 475 Zinc-coated Steel Wire Strand with packing 5000ft/drum(1520m/drum)

A3/8"(1*7)ASTM A 475 Zinc-coated Steel Wire Strand with packing 5000ft/drum(1520m/drum)

    • A3/8"(1*7)ASTM A 475 Zinc-coated Steel Wire Strand with packing 5000ft/drum(1520m/drum)
    • A3/8"(1*7)ASTM A 475 Zinc-coated Steel Wire Strand with packing 5000ft/drum(1520m/drum)
  • A3/8"(1*7)ASTM A 475 Zinc-coated Steel Wire Strand with packing 5000ft/drum(1520m/drum)

    Product Details:

    Place of Origin: Anhui,China
    Brand Name: Litong Global
    Certification: ISO9001-2008
    Model Number: LT-028

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Price: Negotiable

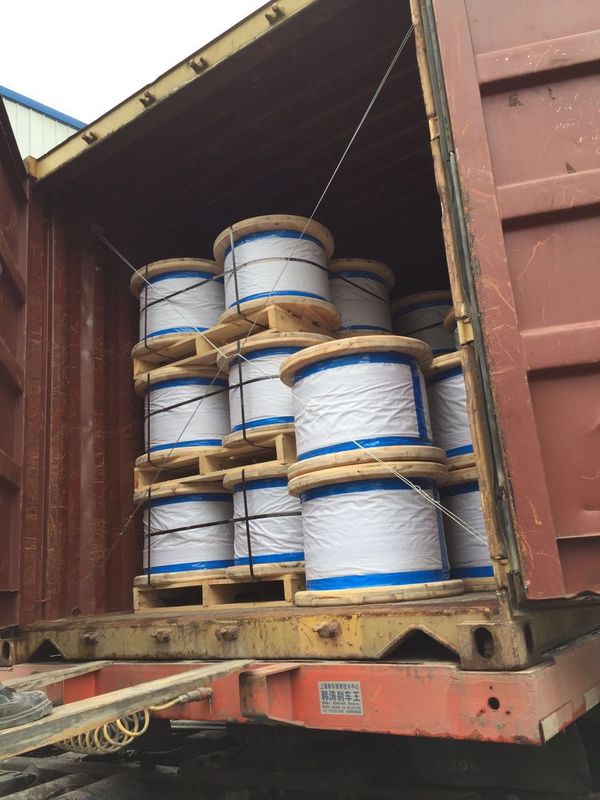

    Packaging Details: Standard export packing on drum
    Contact Now
    Detailed Product Description
    Steel Grade: High Carbon Wire Rod Wire Gauge: 1.0-4.8mm
    Type: Galvanized Alloy Or Not: Non-alloy
    Special Use: Free Cutting Steel Application: Stay Wire,guy Wire,overhead Tansmission Line,ACSR Conductor Etc.
    Standard: AISI|ASTM|BS|DIN|GB|JIS

    Specifications

    Galvanzied steel wire strand
    Galvanized steel wire strand for ground wires, steel core for ACSR, Stay wires ,Guy wires



    GALVANIZED STEEL WIRE STRAND SPECIFICATION AS BELOW:

    1. Galvanzied steel wire strand for

    ground wires, steel core for ACSR, Stay wires ,Guy wires, Messengers

    2. Galvanized steel wire strand Specification: 1X7, 3.00---12.60MM

    1X19, 5.00---19.00MM

    3. Galvanized steel wire strand Standard: ASTM-A475(03), BS 183

    4. Galvanized steel wire strand packing: 5000ft/1524mts/reel

    ASTM A 475-2003
    Norminal Diameter No.of wires Diameter of wire Tolerance of wiere Weight Zinc coating Broken Loading
    Inch mm pcs mm ± mm Kgs/100M G/M2 Lbf Kn
    1/8" 3.18 7 1.04 0.05 48 122 1830 8.14
    5/32" 3.97 7 1.32 0.05 76 122 2940 13.078
    3/16" 4.76 7 1.57 0.08 109 153 3990 17.748
    7/32" 5.56 7 1.83 0.08 146 153 5400 24.02
    1/4" 6.35 7 2.03 0.08 180 183 6650 29.581
    9/32" 7.14 7 2.36 0.10 244 214 8950 39.812
    5/16" 7.94 7 2.64 0.10 305 244 11200 49.82
    3/8" 9.52 7 3.05 0.10 407 259 15400 68.503
    7/16" 11.11 7 3.68 0.13 595 275 20800 92.523
    1/2" 12.7 7 4.19 0.13 770 275 26900 119.657
    9/16" 14.29 7 4.78 0.13 1000 305 35000 155.688
    5/8" 15.88 7 5.26 0.13 1211 305 42400 188.605



    Trade Terms:
    Min Order Qty: 1FCL / 25T
    Delivery Time: 10-15 days
    Price Terms: FOB CFR CIF
    Payment Terms: TT / LC

    FAQ

    Q:If found the product with substardard quality.How can you solve it?
    A:The buyer will be required to submit proof file,picture,ideo of the said substandard cargo send to us first. We can also send our engineer to your filed to check it directly,if need any.



    Q:If sample available?
    A:Yes,we can offer sample free of charge.But the express freight should be on buyer’s account.



    Q:If I order big quantity,what’s the good price?
    A:Please send the details enquiry to us ,such as the Item Number,Quantity for each item, Quality request,Logo,Payment Terms,Transport method,Discharge place etc.We will make the accurate quotation to you as soon as possible.


    If you are interested in our products, pls feel free to tell me the diameter or nominal section area or the nick name to me. Then,I will send our best quotation to you.



    Contact us:

    High Carbon Galvanized Steel Wire for ACSR Conductor as per ASTM B 498.ASTM A 475,BS183, GB/T etc.
