Turkey Bare ACSR Conductor for overhead transmission line as per ASTM B 232 Part 2

Turkey Bare ACSR Conductor for overhead transmission line as per ASTM B 232 Part 2

Products - Aluminium Conductor Steel Reinforced
  • High Light

    acsr conductor

    ,

    overhead line conductor

  • Material
    Galvanized Steel Core Wire And Aluminium
  • Insulation Material
    Bare
  • Number Of Conductors
    Custom
  • Conductor Type
    Strand
  • Application
    Overhead
  • Standard
    GB/T 1179,IEC61089,ASTM B5
  • Place of Origin
    Anhui,China
  • Brand Name
    Litong Global
  • Certification
    ISO9001-2008
  • Model Number
    LT-011
  • Minimum Order Quantity
    Negotiable
  • Price
    Negotiable

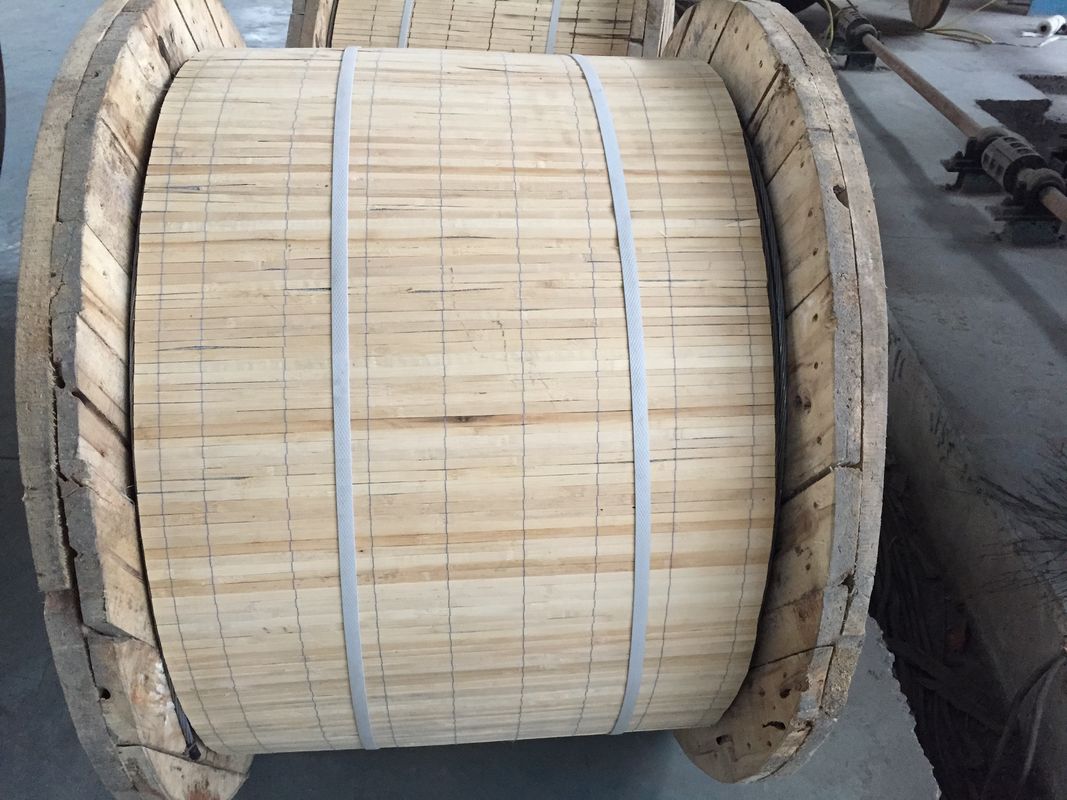

  • Packaging Details
    Standard export packing on drun with enough water-proof paper
  • Supply Ability
    800KM/day

Turkey Bare ACSR Conductor for overhead transmission line as per ASTM B 232 Part 2

  • Turkey Bare ACSR Conductor for overhead transmission line as per ASTM B 232 Part 2
  • Turkey Bare ACSR Conductor for overhead transmission line as per ASTM B 232 Part 2
  • Turkey Bare ACSR Conductor for overhead transmission line as per ASTM B 232 Part 2
Get Price Contact Now
Product Description
Aluminum Conductor Steel Reinforced Bare Aluminum Cable ACSR Conductor

1.Application
ACSR Conductor have been widely used in power transmission lines with various voltage levels, and also used in power lines across great Rivers, plain,highland etc. The cables have excellent advantages of high strength, large current carrying capacity and good catenary property as well as wear-resistance, anti-crush and corrosion-proof with simple structure, convenient and low cost installation and maintenance, large transmission capacity.

2.Standard
ASMTB232 Standard specification for concentric-lay-stranded aluminum conductors, coated-steel reinforced ACSR Conductor
Turkey Bare ACSR Conductor for overhead transmission line as per ASTM B 232 Part 2 0
3.Specification
Aluminum 1350-H19 wires, concentrically stranded around steel core wire for ACSR conductor is available with class A, B, or C galvanizing; "aluminized" aluminum coated(AZ); or aluminum - clad - (AW). Additional corrosion protection is available through the application of grease to the core or infusion of the complete cable.
ASTM B 232 Standard about ACSR Conductor



Code Name

 Size No./Dia.of Stranding Wires Approx Overall Dia.

Approx.

Weight
AWG or MCM Aluminium Steel
No./mm No./mm mm Kg/km
Turkey 6 6/1.68 1/1.68 5.04 54
Swan 4 6/2.12 1/2.12 6.36 85
Swanate 4 7/1.96 1/2.61 6.53 100
Sparrow 2 6/2.67 1/2.67 8.01 136
Sparate 2 7/2.47 1/3.30 8.24 159
Robin 1 6/3.00 1/3.00 9 171
Raven 1/0 6/3.37 1/3.37 10.11 216
Quail 2/0 6/3.78 1/3.78 11.34 273
Pigeon 3/0 6/4.25 1/4.25 12.75 343
Penguin 4/0 6/4.77 1/4.77 14.31 433
Waxwing 266.8 18/3.09 1/3.09 15.45 431
Partridge 266.8 26/2.57 7/2.00 16.28 546
Ostrich 300 26/2.73 7/2.12 17.28 614
Merlin 336.4 18/3.47 1/3.47 17.5 544
Linnet 336.4 26/2.89 7/2.25 18.31 689
Oriole 336.4 30/2.69 7/2.69 18.83 784
Chickadee 397.5 18/3.77 1/3.77 18.85 642
Brant 397.5 24/3.27 7/2.18 19.61 762
Ibis 397.5 26/3.14 7/2.44 19.88 814
Lark 397.5 30/2.92 7/2.92 20.44 927
Pelican 477 18/4.14 1/4.14 20.7 771
Flicker 477 24/3.58 7/2.39 21.49 915
Hawk 477 26/3.44 7/2.67 21.79 978
Hen 477 30/3.20 7/3.20 22.4 1112
Osprey 556.5 18/4.47 1/4.47 22.35 899
Parakeet 556.5 24/3.87 7/2.58 23.22 1067
Dove 556.5 26/3.72 7/2.89 23.55 1140
Eagle 556.5 30/3.46 7/3.46 24.21 1298
Peacock 605 24/4.03 7/2.69 24.2 1160
Turkey 6 6/1.68 1/1.68 5.04 54
Swan 4 6/2.12 1/2.12 6.36 85
Swanate 4 7/1.96 1/2.61 6.53 100
Sparrow 2 6/2.67 1/2.67 8.01 136
Sparate 2 7/2.47 1/3.30 8.24 159
Robin 1 6/3.00 1/3.00 9 171
Raven 1/0 6/3.37 1/3.37 10.11 216
Quail 2/0 6/3.78 1/3.78 11.34 273
Pigeon 3/0 6/4.25 1/4.25 12.75 343
Penguin 4/0 6/4.77 1/4.77 14.31 433
Waxwing 266.8 18/3.09 1/3.09 15.45 431
Partridge 266.8 26/2.57 7/2.00 16.28 546
Ostrich 300 26/2.73 7/2.12 17.28 614
Merlin 336.4 18/3.47 1/3.47 17.5 544
Linnet 336.4 26/2.89 7/2.25 18.31 689
Oriole 336.4 30/2.69 7/2.69 18.83 784
Chickadee 397.5 18/3.77 1/3.77 18.85 642
Brant 397.5 24/3.27 7/2.18 19.61 762
Ibis 397.5 26/3.14 7/2.44 19.88 814
Lark 397.5 30/2.92 7/2.92 20.44 927
Pelican 477 18/4.14 1/4.14 20.7 771
Flicker 477 24/3.58 7/2.39 21.49 915
Hawk 477 26/3.44 7/2.67 21.79 978
Hen 477 30/3.20 7/3.20 22.4 1112
Osprey 556.5 18/4.47 1/4.47 22.35 899
Parakeet 556.5 24/3.87 7/2.58 23.22 1067
Dove 556.5 26/3.72 7/2.89 23.55 1140
Eagle 556.5 30/3.46 7/3.46 24.21 1298
Peacock 605 24/4.03 7/2.69 24.2 1160
Penguin 4/0 6/4.77 1/4.77 14.31 433
Waxwing 266.8 18/3.09 1/3.09 15.45 431
Partridge 266.8 26/2.57 7/2.00 16.28 546
Ostrich 300 26/2.73 7/2.12 17.28 614
Merlin 336.4 18/3.47 1/3.47 17.5 544
Linnet 336.4 26/2.89 7/2.25 18.31 689
Oriole 336.4 30/2.69 7/2.69 18.83 784
Chickadee 397.5 18/3.77 1/3.77 18.85 642

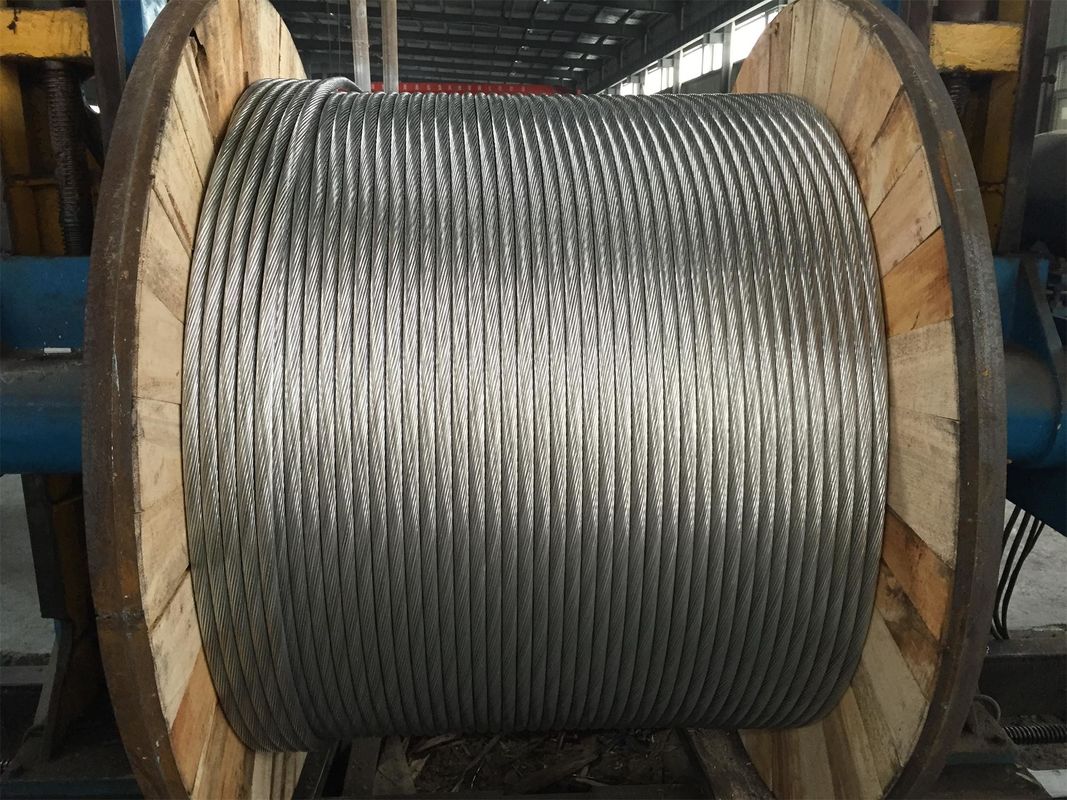

Production process:

Turkey Bare ACSR Conductor for overhead transmission line as per ASTM B 232 Part 2 1

FAQ

Q:If found the product with substardard quality.How can you solve it?
A:The buyer will be required to submit proof file,picture,ideo of the said substandard cargo send to us first. We can also send our engineer to your filed to check it directly,if need any.



Q:If sample available?
A:Yes,we can offer sample free of charge.But the express freight should be on buyer’s account.



Q:If I order big quantity,what’s the good price?
A:Please send the details enquiry to us ,such as the Item Number,Quantity for each item, Quality request,Logo,Payment Terms,Transport method,Discharge place etc.We will make the accurate quotation to you as soon as possible.



If you are interested in our products, pls feel free to tell me the diameter or nominal section area or the nick name to me. Then,I will send our best quotation to you.





Competitive Advantage:

1) Short and timely delivery

2) Considerate after-sales service

3) Professional manufacture for Galvanized steel wire strand more than 15years

4) Full set of testing equipment to ensure products’ performance

5) Strict quality control process

6)We are factory and our price is competitive
