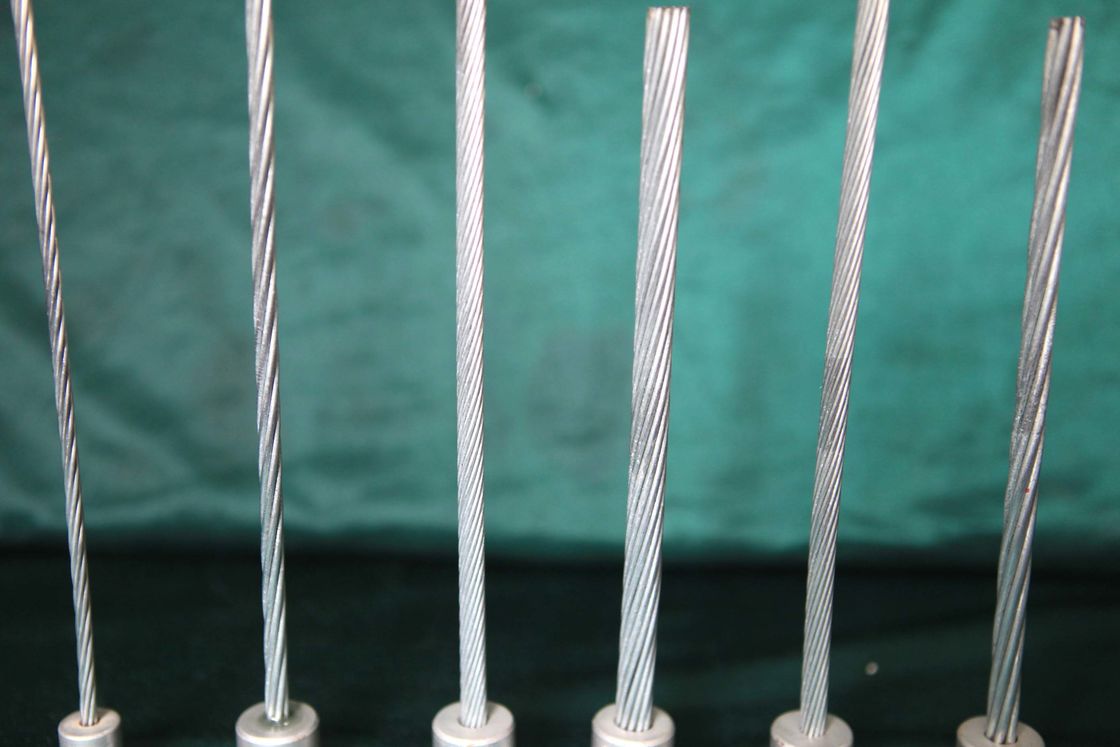

Messenger Wire
Galvanized Wire is made to ASTM B498; ASTM A 475; BS 183 etc. The metallic zinc coatings applied by the galvanizing process are an effective way of combating corrosion in steel. Galvanized wire for cable application is available in a Class A coating; Class B coating and Class C coating.
Class A coatings are smoother, however less corrosion resistant than heavy galvanized coatings and are often used in normal wire working applications. Some typical end users include cages, bucket handles, coat hangers and baskets.
Class B and Class C coatings are used in conditions where atmospheric corrosion is severe. End users include crop support wires where chemicals are used, pool fencing or chain mesh in coastal areas.
Additional Info
Diameter Range: 1.57 -4.00 mm
Galvanised Wire Working Specifications
Given that galvanized wire is classified according to the amount of zinc coating, the following table outlines the difference between standard, heavy galvanized and extra-high galvanized wire.
| Dia. of strand, in(mm) | Minimum Breaking Strength of Strand,1bf(kN) | Weight of Zine Coating, g/m2 | ||
| High Strength Grade | Extra High Strength Grade | CLASS A | CLASS B | |
| 3/16(4.76) | 2850(12.677) | 3990(17.748) | 153 | / |
| 1/4(6.35) | 2850(21.129) | 6650(29.581) | 183 | 366 |
| 5/16(7.94) | 8000(35.586) | 11200(49.820) | 244 | 488 |
| 3/8(9.52) | 10800(48.040) | 15400(68.503) | 259 | 519 |
| 7/16(11.11) | 14500(64.499) | 20800(92.523) | 275 | 549 |
| 1/2(12.70) | 18800(83.627) | 26900(119.657) | 275 | 549 |
| Dia of Wire, mm | Tensile Strength, Mpa | Stress at 1% Extension, Mpa | Coating, g/m2 | |
| CLASS A | CLASS B | |||
| 0.80-1.57 | 1000-1550 | / | 50-153 | / |
| 1.57-1.90 | 1000-1550 | / | 153-210 | / |
| 1.90-2.30 | 1000-1550 | 1310 | 220 | 440 |
| 2.30-2.70 | 1000-1550 | 1280 | 230 | 460 |
| 2.70-3.10 | 1000-1550 | 1280 | 240 | 480 |
| 3.10-3.50 | 1000-1550 | 1240 | 260 | 520 |
| 3.50-3.90 | 1000-1550 | 1170 | 270 | 540 |
| 3.90-4.50 | 1000-1550 | 1170 | 275 | 550 |
| 4.50-4.80 | 1000-1550 | 1170 | 300 | 600 |
FAQ
Q:If found the product with substardard quality.How can you solve it?
A:The buyer will be required to submit proof file,picture,ideo of the said substandard cargo send to us first. We can also send our engineer to your filed to check it directly,if need any.
Q:If sample available?
A:Yes,we can offer sample free of charge.But the express freight should be on buyer’s account.
Q:If I order big quantity,what’s the good price?
A:Please send the details enquiry to us ,such as the Item Number,Quantity for each item, Quality request,Logo,Payment Terms,Transport method,Discharge place etc.We will make the accurate quotation to you as soon as possible.
If you are interested in our products, pls feel free to tell me the diameter or nominal section area or the nick name to me. Then,I will send our best quotation to you.
