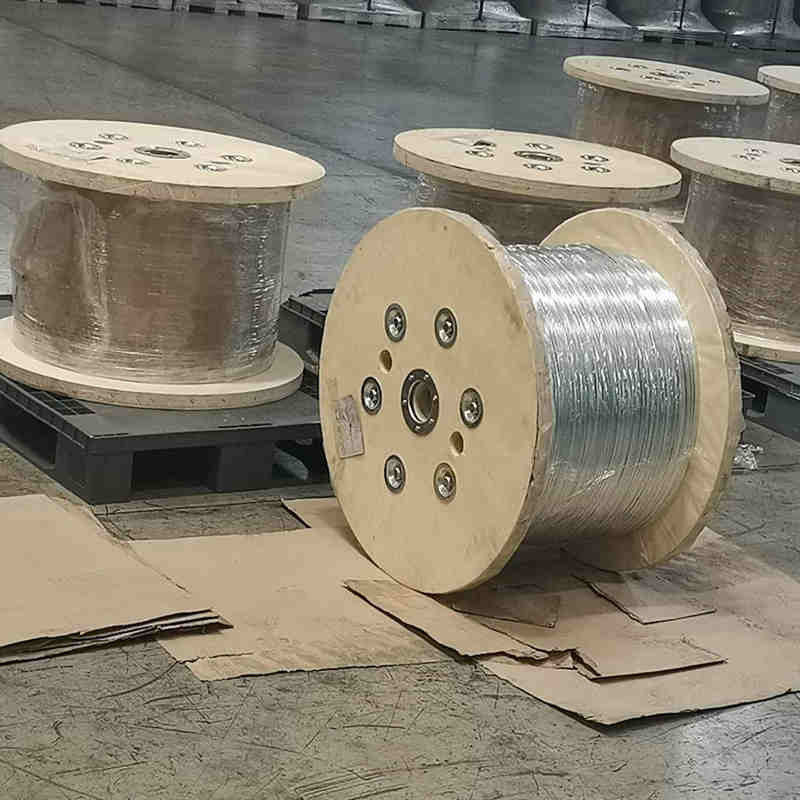

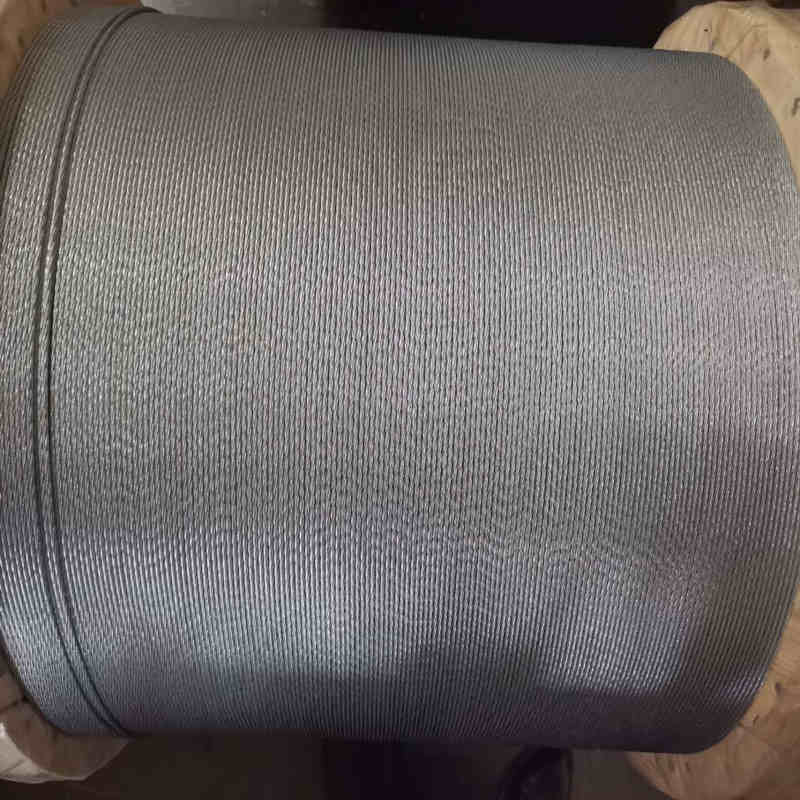

Galvanized steel wire rope
Specification:
| 1x7 | ||
| Nominal Diameter | Min. breaking loading | Linear density |
| mm | KN | Kg/100m |
| 1.20 | 1.43 | 0.71 |
| 1.40 | 1.61 | 0.98 |
| 1.60 | 2.37 | 1.25 |
| 1.80 | 3.04 | 1.60 |
| 2.00 | 3.79 | 2.00 |
| 2.30 | 5.00 | 2.64 |
| 2.60 | 6.01 | 3.36 |
| 3.00 | 7.99 | 4.45 |
| 3.60 | 10.71 | 6.40 |
| 4.20 | 14.58 | 8.72 |
| 4.80 | 17.73 | 11.37 |
| 5.40 | 22.45 | 14.40 |
| 6.00 | 27.72 | 17.178 |
Note: Providing engineer design according to customer’s request
| 1x19 | ||
| Nominal Diameter | Min. breaking loading | Linear density |
| mm | KN | Kg/100m |
| 1.50 | 2.13 | 1.08 |
| 1.80 | 3.07 | 1.56 |
| 2.20 | 4.60 | 2.34 |
| 2.50 | 5.94 | 3.02 |
| 3.00 | 8.07 | 4.34 |
| 3.50 | 10.97 | 5.91 |
| 4.00 | 14.35 | 7.22 |
| 5.00 | 19.74 | 12.06 |
| 6.00 | 28.43 | 17.38 |
| 7.00 | 38.70 | 23.65 |
| 8.00 | 47.10 | 30.89 |
| 9.00 | 59.62 | 39.09 |
| 10.00 | 76.60 | 48.26 |
| 11.00 | 89.05 | 58.39 |
Note: Providing engineer design according to customer’s request
Our products are sold all over the world, you can rest assured.
