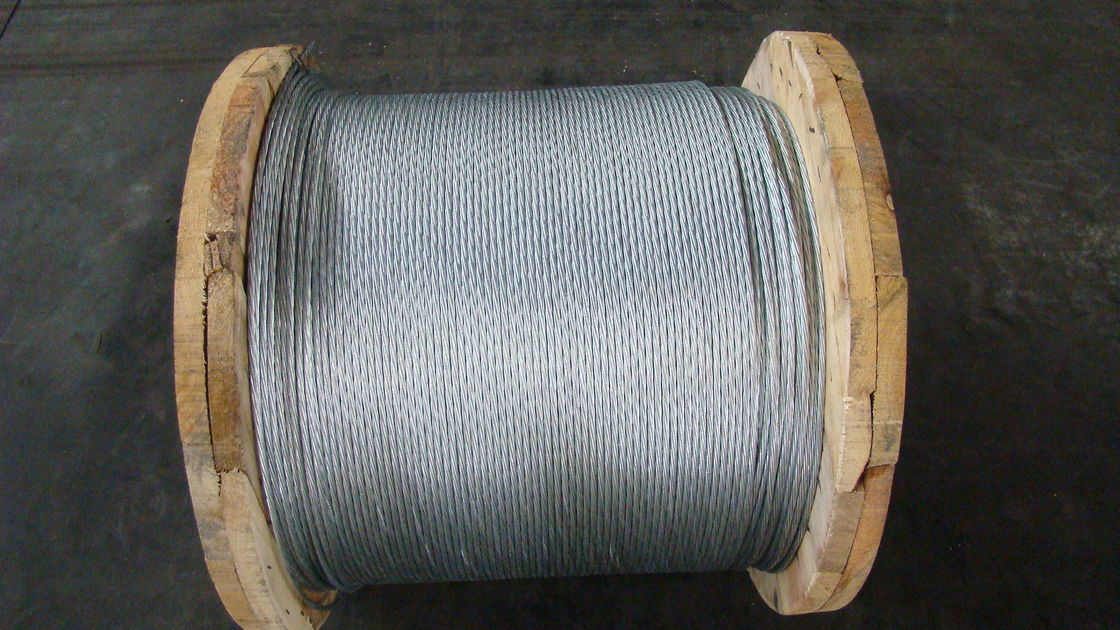

Overhead Galvanized Earth Wire / Ground Wire ASTM A 475 ASTM B 498 BS 183

Overhead Galvanized Earth Wire / Ground Wire ASTM A 475 ASTM B 498 BS 183

  • High Light

    galvanised steel cable

    ,

    guy wire cable

  • Name
    Galvanized Steel Wire Cable
  • Material
    High Carbon Wire Rod
  • Surface Treatment
    Hot-dipped Galvanized
  • Standard
    ASTM A 475
  • Grade
    EHS
  • Application
    Guy Wire,stay Wire,Bare ACSR Conductor
  • Place of Origin
    Anhui,China
  • Brand Name
    Litong Global
  • Certification
    ISO9001-2008
  • Model Number
    LT-171208
  • Minimum Order Quantity
    10tons
  • Price
    discuss
  • Packaging Details

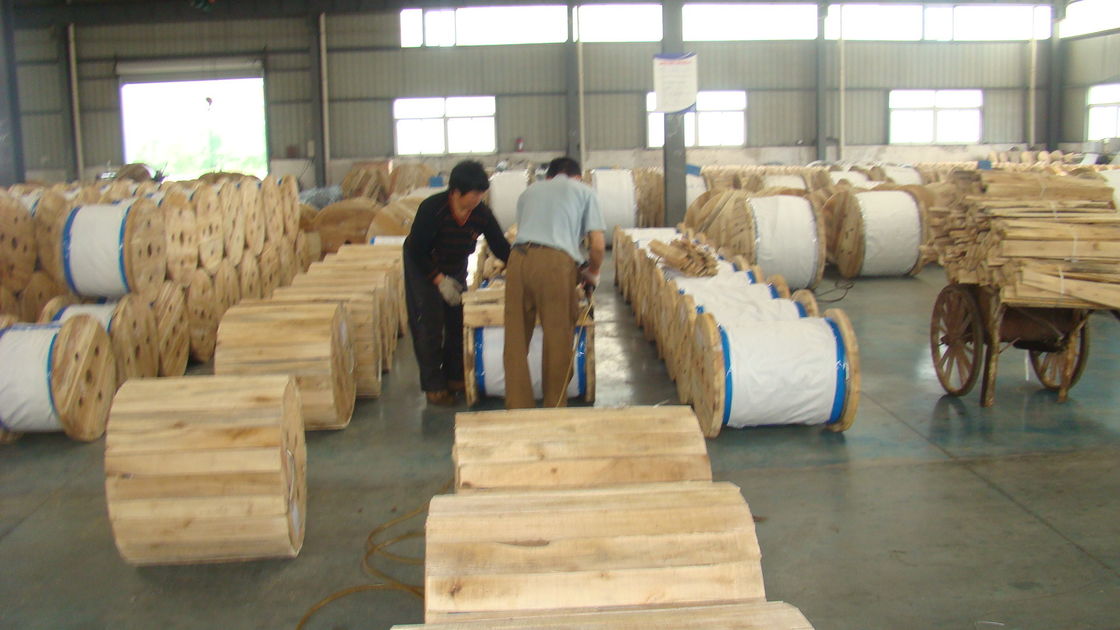

    standard export packing on drum
  • Supply Ability
    400tons/day

Overhead Galvanized Earth Wire / Ground Wire ASTM A 475 ASTM B 498 BS 183

Galvanized steel wire cable as per ASTM A 475 Class A EHS for guy wire,stay wire,ACSR Conductor

1.Technical Date:



Galvanized Steel Wire Strand as per ASTM A 475

Norminal Diamater of Strand

No. of Wires

Diamater of Wire

Tolerance of Wire

Weight

Zinc-coating

Breaking Loading

mm

-

mm

mm

Kg/Km

g/m2

KN

3.18

7

1.04

±0.05

48

122

8.14

3.97

7

1.32

±0.05

76

122

13.078

4.76

7

1.57

±0.08

109

153

17.748

5.56

7

1.83

±0.08

146

153

24.02

6.35

7

2.03

±0.08

180

183

29.581

7.14

7

2.36

±0.10

244

214

39.812

7.94

7

2.64

±0.10

305

244

49.82

9.52

7

3.05

±0.10

407

259

68.503

11.11

7

3.68

±0.13

595

275

92.523

12.7

7

4.19

±0.13

770

275

119.657

Galvanized Steel Wire as per ASTM B 498

Wire Diamater(mm)

Diamater Tolerance(mm)

Weight of Zinc-coating(g/m2)

Stress at 1% Extension,Min(Mpa)

Tensile Strength

Min.(Mpa)

Elongation in 250mm,Min(%)

1.57-1.90

+0.04,-0.03

210

1310

1450

3.0

Over 1.9-2.3

+0.04,-0.03

220

1310

1450

3.0

Over 2.3-2.7

+0.05,-0.05

230

1280

1410

3.5

Over 2.7-3.1

+0.05,-0.05

240

1280

1410

3.5

Over3.1-3.5

+0.08,-0.05

260

1240

1410

4.0

Over 3.5-3.9

+0.08,-0.05

270

1240

1410

4.0

Over 3.9-4.5

+0.1,-0.08

275

1170

1380

4.0

Over 4.5-4.8

+0.1,-0.08

300

1170

1380

4.0

2.Our Main products

Galvanized steel wire strand

(1)Overhead Galvanized Earth Wire/ Ground Wire/Shield Wire

(2)AS 1222.1 Galvanized Steel Strand 19×3.25mm

(3)Galvanized Steel wire for ACSR steel Core 3.37mm

(4)ACSR Core Wire 3.2mm

(5)Guy Wire 1/4" EHS, 5000Ft/Reel

(6)Zinc Coated Steel Wire Strand, 5/16" HS Class A

(7)Galvanized Steel Wire Strand ,EHS, 5000FT/Reel

(8)ACSR Steel Core Wire

(9)Messenger Steel Wire

(10)Messenger Steel Wire Strand

(11)Galvanized Stay Wire 7/8 12mm

(12)Gal. strand, EHS Class A Coating

(13)Galvanized steel wire strand 3/8" EHS, Class A Coating

(14)GUY WIRE, EHS, CALSS A COATING

(15)GALVANIZED STEEL WIRE STRAND FOR COMMUNICATION TOWER

(16)GALVANIZED STEEL WIRE FOR BARE ALUMINUM CONDUCTORS

(17)GALVANIZED STEEL CABLE D12

(18)GALVANIZED STEEL CABLE D10

(19)GALVANIZED STRANDED STEEL WIRE FOR SUSPENSION WIRE

(20)GALVANIZED STEEL WIRE AS MESSENGER WIRE

  1. Galvanized steel wire

(1)Galvanized Steel Wire 4.5mm for ACSR in Vietnam

(2)Galvanized Steel Wire 4.5mm for ACSR

(3)Galvanized Steel Wire 2.5mm for ACSR

(4)EHS Messenger Wire 5/16" ASTM A 475

(5)Greased Galvanized steel core wire for ACSR

(6)Messenger wire 3/8"

(7)Galv. Steel Wire ACSR

(8)Galvanized Steel Wire 1.93mm for ACSR With ASTM B 498

(9)Galvanized steel wire strand 7×1.57mm for aluminum conductor

(10)Galvanized steel wire strand 7×3.08mm for aluminum conductor

(11)Galvanized Steel Wire for OPGW

(12)Galvanized Steel Wire for Aluminum Coductor(ACSR)

(13)ACSR Wire

(14)Galvanized Steel Wire Strand 7/2.65mm with ASTM B 498

(15)Galvanized Steel Wire 1.68mm with ASTM B 498

3. Galvanized Steel Core For ACSR

(1)ACSR Core Wire 4.77mm

(2)Galvanized Steel Wire 4.09mm

(3)Galvanized Steel Core Wire 4.77mm

(4)Galvanized steel wire for ACSR 4.5mm

(5)Galvanized Steel Wire 4.77mm for ACSR

(6)Galvanized Steel Wire 3.37mm for ACSR

(7)Galvanized Steel Core for ACSR With Grease

(8)Galvanized Steel Wire Strand 7×2.65mm for ACSR With ASTM B 498

(9)ACSR Galvanized Steel core strand

(10)Greased Galvanized steel core for ACSR ASTM B498

(11)4.09mm Galvanized Steel Wire, BS 4565

(12)Galvanized Steel Wire 4.09mm for ACSR

(13)Galvanized Steel Core Wire 2.68mm as per ASTM B 498 with Steel Drum

(14)Galvanized Steel Core Wire 3.37mm as per ASTM B 498 with Steel Drum

4. Guy wire as per ASTM A 475

(1)Galvanized Strand 1×7

(2)EHS GUY Strand 1/2" Class A

(3)EHS GUY WIRE 1/4" Class A

(4)EHS GUY Strand 3/8" Class A

(5)Galvanized Steel Wire Strand 7/16",1×7 EHS

(6)Galvanized Steel Wire Strand 5/16",1×7 EHS

(7)Galvanized Steel Wire Strand 5/16",1×7 EHS

(8)EHS GUY Strand 7/16" Class A

(9)EHS GUY Strand 5/16" Class A

(10)EHS GUY Strand 1/4" Class A

(11)EHS GUY WIRE 11/16" Class A

(12)EHS GUY WIRE 1/2" Class A

(13)EHS GUY WIRE 9/16" Class A

(14)EHS GUY WIRE 5/8" Class A

(15)EHS GUY WIRE 3/4" Class A

(16)EHS GUY WIRE 7/8" Class A

(17)Galvanized Steel Cable with Wooden Drum

(18)HT Galvanized Strand

(19)Galvanized Strand 1×19

(20)Guy Strand 1/2", EHS

(21)Galv. Strand 1/4",EHS, ASTM A 475

(22)GI Wires 1×7

(23)Galvanized Steel Wire Strand, BS 183

(24)Stay wire 12mm

(25)Guy Strand 3/8" EHS, Class A

5. Galvanized Stay wire as per BS 183



(1)Stay wire 7/3.25mm with packing 100m/coil



(2)Stay wire7/4.0mm with packing 100m/coil



(3)Galvanized Steel Wire Strand 7/1.6mm from Grade700-Grade1300 as per BS183



(4)Galvanized steel wire strand for stay wire 7/2.65mm from Grade700-Grade1300 as per BS 183



(5)Galvanized steel wire strand for stay wire 7/3.0mm from Grade700-Grade1300 as per BS183



(6)Galvanized steel wire strand for stay wire 7/3.15mm from Grade700-Grade1300 as per BS183



(7)Galvanized steel wire strand for stay wire7/3.25mm from Gade700-Grade1300 as per BS183



(8)Galvanized steel wire strand for stay wire 7/3.65mm from Grade700-Grade1300 as per BS183



(9)Galvanized stay wire 7/4.0mm from Grade700-Grade1300 as per BS183



(10)Galvanized stay wire 7/4.25mm from Gade700-Grade1300 as per BS183



(11)Galvanized stay wires19/2.0mm from Gade700-Grade1300 as per BS 183



(12)Galvanized stay wire 19/2.5mm from Grade700-Grade1300 as per BS183



(13)Galvanized stay wire 19/3.0mm from Grade700-1300 as per BS 183



(14)Galvanized stay wire 19/3.55mm from Grade700-Grade1300 as per BS 183



6. cables de acero galvanizado(Cables de acero galvanizado grado HS y EHS, Cable de Acero



Galvanizado y Alambres y cables para el coductor ACSR (Aluminum Cable Steel Reinforced)


Guy Wire 5/16" EHS Grade , Cables de acero galvanizado grado)



7. messenger wire messenger strand

(1) EHS Messenger wire 3/8"

(2) Messenger wire 5/16", EHS

(3) Messenger strand 1/4" EHS

(4) Galvanized stranded messenger steel wire with ASTM A 475

(5) Messenger Wire Strand 5/16inch with ASTM A 475, EHS

(6) Suspension Strand 1/4inch with ASTM A 475, EHS

8. cattle strand cable

(1) Cattle Strand 8.25mm/Fence wire

(2) Galvanized Cattle cable 3/8" EHS

(3) Galvanized Cattle strand cable 5/16" EHS

(4) Australia Cattle strand cable 8.25mm

(5) Plain high tensile fence wire 2.8mm

(6) Galv. Strand 1/2" Class A EHS for Fence

(7) Cattle Cable 8.25mm with 7 wires strand single wire 2.75mm

(8) Galvanized High Tensile Wire 4.0mm for orchard

(9) Cattle Yard Strand 3/8" Dia

9. communication tower guy wire

(1) Messenger strand for telephone and CATV lines

(2) Guy strand for power distribution poles, telephone poles and microwave and radio towers

(3) Vietnam Galvanized steel wire rope D12 for communication tower

(4) Galvanized Steel Strand D12 for Communication Tower

(5) Galvanized Steel Cable D10 for Communication Tower

(6) Galvanized Steel Cable D12 for Communication Tower

(7) Guy Strand 3/4", EHS

(8) Guy Strand EHS ASTM A 475

(9) Tower Guy wire EHS ASTM A 475

(10) Tower Guy wire strand

(11) Power tower stay wire or Guy wire

(12) Galvanized Steel Cable 12mm, 19×2.54mm for communication tower

(13) Steel Cable F8, 7×2.64mm, ASTM A 475 EHS

(14) Steel Cable F10, 7×3.05mm, ASTM A 475 EHS

(15) Steel Cable F12, 19×2.54mm, ASTM A 475 EHS

(16) Steel Cable D10, 7×3.05mm, ASTM A 475 EHS

(17) Steel Cable D12 7×4.19mm ASTM A 475 EHS

(18) Steel Cable D10 ASTM A 475 EHS

(19) Steel Cable D12 ASTM A 475 EHS

10. high tensile galvanized fence steel wire

(1) Austrilia Ultra tensile strength Galvanized steel fence wire 2.5mm Min 1960Mpa

(2) Ultra tensile strength Galvanized steel wire 4.0mm Min 1670Mpa

(3) Zinc-coated Steel Wires Strand 7×1.6mm for Greenhouse

(4) Zinc-coated Steel Wires Strand 1×7 EHS 3/16inch, ASTM A 475

11. galvanized steel wire for guy grip

(1) Galvanized Steel Wire 3.8mm with ASTM B 498

(2) Galvanized Steel Wire 3.2mm with ASTM B 498

(3) Steel wires for Guy Grip

(4) High Carbon Steel wires for Guy Grip



(5) Galvanized(Zinc-coated) Steel wire for Guy Grip



(6) Galvanized Steel wire for Dead End Clamp



(7) Galvanized 1×19 Steel wire for Vibration Damper



(8) 1×7 Galvanized Steel wire for Vibration Damper



(9) Galvanized 1×19 Steel messenger cable Used for Vibration Damper



(10) 1×19 Galvanized Steel Wires Strand Used for Vibration Damper



(11) 1×7 Galvanized Steel Wires Strand Used for Vibration Damper



(12) Zinc-coated Steel Wires Strand 1×7 Used for Vibration Damper



(13) Zinc-coated Steel Wires Strand Used for Vibration Damper



(14) Galvanized steel wires used for Vibration Damper & Guy grip



(15) Galvanized steel wire strand for Vibriation Damper
