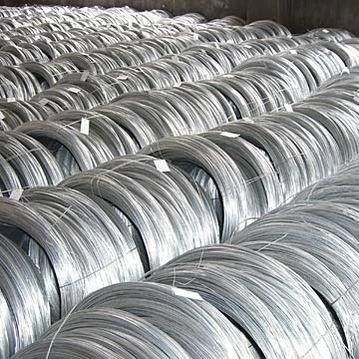

1.85mm 4.77mm Galvanized Steel Core Wire For Overhead Transmission Lines

1.85mm 4.77mm Galvanized Steel Core Wire For Overhead Transmission Lines

  • 1.85mm 4.77mm Galvanized Steel Core Wire For Overhead Transmission Lines
  • 1.85mm 4.77mm Galvanized Steel Core Wire For Overhead Transmission Lines
  • 1.85mm 4.77mm Galvanized Steel Core Wire For Overhead Transmission Lines
  • 1.85mm 4.77mm Galvanized Steel Core Wire For Overhead Transmission Lines
1.85mm 4.77mm Galvanized Steel Core Wire For Overhead Transmission Lines
Product Details:
Place of Origin: ANHUI,CHINA
Brand Name: Litong Global
Certification: ISO9001-2008
Model Number: LT-161211
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Standard export seaworthy packing
Contact Now
Detailed Product Description
Material: High Carbon Wire Rod Cross Sectional Shape: Round
Application:: Construction Wire Mesh, Protecting Mesh, Screen, Barbecue Wire Mesh, Filter Type:: Galvanized
Surface Treatment:: Hot Dipped Galvanized Metal Wire Drawing:: Cold Drawing
Status:: Hard State Specification: ASTM B475, ASTM B498, AS 1222.1, GB/T3428-2002
Packing: Standard Export Packing In Coil Or On Drum
High Light:

galvanised steel wire

,

zinc coated wire

1.85mm/2.1mm/2.8mm/3.6mm/4.77mm Galvanized Steel Core Wire for ACSR Conductor





Technical Parameters

Galvanized Steel Wire as per ASTM B 498

Wire Diamater(mm) Diamater Tolerance(mm) Weight of Zinc-coating(g/m2) Stress at 1% Extension,Min(Mpa)

Tensile Strength

Min.(Mpa)

Elongation in 250mm,Min(%)
1.57-1.90 +0.04,-0.03 210 1310 1450 3.0
Over 1.9-2.3 +0.04,-0.03 220 1310 1450 3.0
Over 2.3-2.7 +0.05,-0.05 230 1280 1410 3.5
Over 2.7-3.1 +0.05,-0.05 240 1280 1410 3.5
Over3.1-3.5 +0.08,-0.05 260 1240 1410 4.0
Over 3.5-3.9 +0.08,-0.05 270 1240 1410 4.0
Over 3.9-4.5 +0.1,-0.08 275 1170 1380 4.0
Over 4.5-4.8 +0.1,-0.08 300 1170 1380 4.0

Galvanized Steel Wire Strand as per ASTM A 475

Norminal Diamater of Strand No. of Wires Diamater of Wire Tolerance of Wire Weight Zinc-coating Breaking Loading
mm - mm mm Kg/Km g/m2 KN
3.18 7 1.04 ±0.05 48 122 8.14
3.97 7 1.32 ±0.05 76 122 13.078
4.76 7 1.57 ±0.08 109 153 17.748
5.56 7 1.83 ±0.08 146 153 24.02
6.35 7 2.03 ±0.08 180 183 29.581
7.14 7 2.36 ±0.10 244 214 39.812
7.94 7 2.64 ±0.10 305 244 49.82
9.52 7 3.05 ±0.10 407 259 68.503
11.11 7 3.68 ±0.13 595 275 92.523
12.7 7 4.19 ±0.13 770 275 119.657

Projects for our Galvanized steel wire/Strand



Overhead Transmission Lines

One of our core focusareas is high voltage and extra high voltage transmission line projects.

Our technical capabilities,financial viability and superior execution skills ensures cutting-edge project development and implementation.



1.85mm 4.77mm Galvanized Steel Core Wire For Overhead Transmission Lines 0

1.85mm 4.77mm Galvanized Steel Core Wire For Overhead Transmission Lines 1

Packing&Loading

1.85mm 4.77mm Galvanized Steel Core Wire For Overhead Transmission Lines 21.85mm 4.77mm Galvanized Steel Core Wire For Overhead Transmission Lines 3



Welcome to enquiry our high carbon galvanized steel wire
